Product Description
1. Daily production capacity: The output of our ice block maker is
from 1ton per day to 100tons per day. But if export to abroad, we
suggest make several units to reach capacity for direct technology
block ice machine due to the limitation of transportation. Max.
capacity for direct cooling block ice machine is 30MT/DAY.
2. Weight of ice block: The weight of the smallest block ice is 5kg
and this size is at most for daily capacity 5tons, that's because
if we make a more than 5tons daily production ice block machine,
the cost will increase and evaporator too big not easy for
shipment.
3. Ice freezing time: For 5kg, 10kg, 15kg, the ice freezing time is
5.5 hours. For 20kg, 25kg, the ice freezing time is 7.5hours, For
50kg, the ice freezing time will be 8hours to 12hours.
Focusun Block Ice Machine - Customized ice machinery and
one-station solution (Turnkey solution) Features of ice block machine:
1.The evaporator adopts special aluminium alloy plate which is more
durable and reaches food hygiene requirements
2. Ice thawing and ice doffing are fully automatic. No manual work
is needed and the process is time-saving thus more efficient.
3. The ice is doffed by batch and the whole ice-doffing process
only takes 25 minutes.
4. The whole batch of ice blocks can be moved by forklift. Quick
and convenient.
5. Module design makes the ice maker easy to transport, move and
install.
6. Every direct refrigeration block ice machine can be designed and
produced according to your specific requirements.
7. The direct refrigeration block ice maker machine can be
installed in 20ft or 40ft brand new container with other relevant
equipments.
8. Bitzer refrigeration system to guarantee performance;
9. Good heat isulation for water tank;
10. Focusun block ice machine is Good appearance,easy opeartion and
maintenance.
11. Machine can be made into containerized model

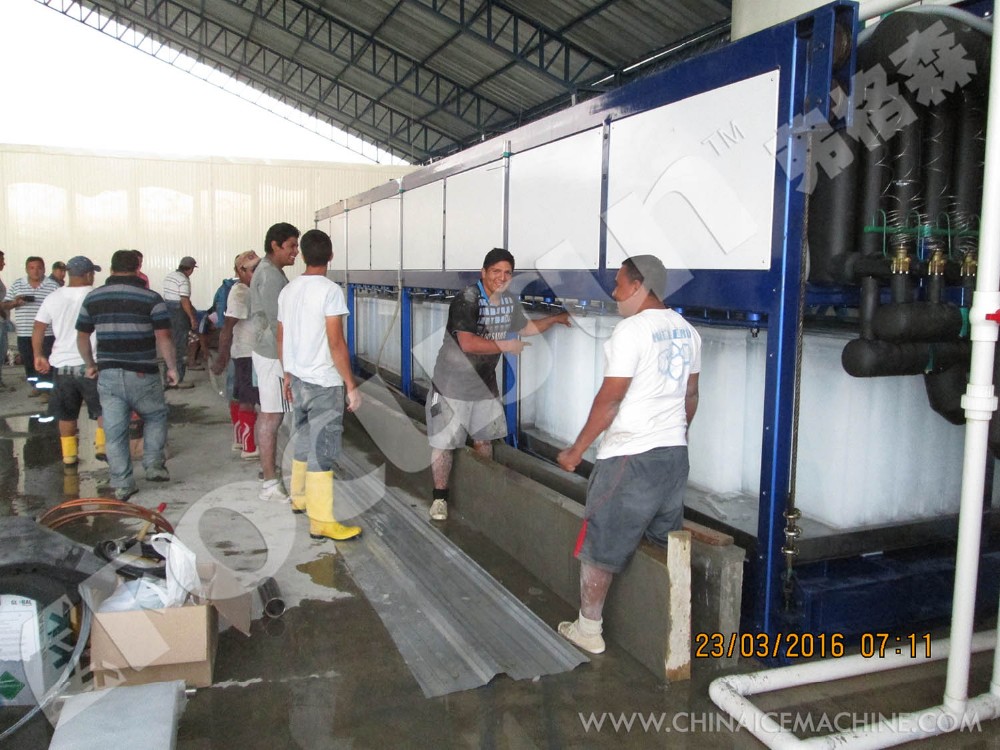

PICTURES OF THE WHOLE BLOCK ICE MAKING PLANT, ICE DOFFING ON THE
ICE RECEIVING PLATE DIRECTLY
If you want special design, we could add ice moving out devide,
when the ice doffed, through this ice moving devide, more easy to
move ice out to ice storage. But cost is higher
Further, if you have no factory, you could consider containerized
block ice machine all equipments installed inside a 20ft or 40ft
container. People operate inside container. Below are 2 different
design with ice moving out device and without ice moving out devide
for india and Sudan customer

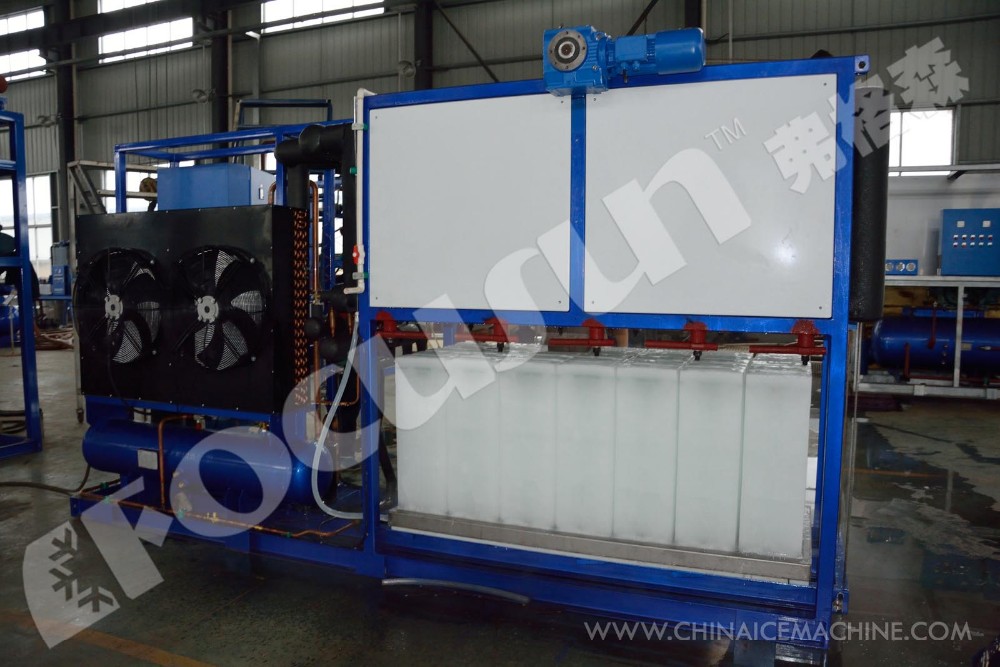

Pictures of small block ice machine:
Other products:
Ice Storage:
Ice Crusher:
Ice compactor, trun tube ice or flake ice into block ice. Any
weight you want.
Direct refrigeration block ice machine technical parameter
| Model | Capacity | Refrigerant | Electricity consumption | Installment power | Operating weight | Dimension |
|---|
| -- | Ton/D | -- | Kw | Kw | Kg | mm |
| FIB-05D | 0.5 | R22/R404A | 2.055 | 2.5 | 560 | 1500×800×1800 |
| FIB-10D | 1.0 | R22/R404A | 4.850 | 6.0 | 960 | 1800×1200×2000 |
| FIB-15D | 1.5 | R22/R404A | 6.940 | 8.5 | 1260 | 2800×1200×2000 |
| FIB-20D | 2.0 | R22/R404A | 8.160 | 10.0 | 1460 | 2800×1400×2000 |
| FIB-25D | 2.5 | R22/R404A | 9.510 | 12.0 | 1660 | 3200×1400×2000 |
| FIB-30D | 3.0 | R22/R404A | 11.520 | 14.0 | 2180 | 3600×1400×2200 |
| FIB-35D | 3.5 | R22/R404A | 14.850 | 18.0 | 2100 | 3600×1650×2000 |
| FIB-50D | 5.0 | R22/R404A | 20.900 | 25.0 | Unit:960 | L1400×W1000×H1250 |
| Evaporator:2860 | L4800×W1000×H2250 |
| Cooling tower:670 | 1380×H2170 |
| FIB-100D | 10.0 | R22/R404A | 33.980 | 50.0 | Unit:1680 | L1800×W1000×H1450 |
| Evaporator:2860×2 | L4800×W1000×H2250 |
| Cooling tower:670 | 2000×H2410 |
| FIB-150D | 15.0 | R22/R404A | 59.150 | 75.0 | Unit:2160 | L2000×W1200×H1600 |
| Evaporator:2860×3 | L4800×W1000×H2250 |
| Cooling tower:1120 | 2175×H2565 |
| FIB-200D | 20.0 | R22/R404A | 85.550 | 105.0 | Unit:2896 | L2400×W1600×H1800 |
| Evaporator:2860×4 | L4800×W1000×H2250 |
| Cooling tower:1300 | 2650×H2645 |
| FIB-250D | 25.0 | R22/R404A | 94.050 | 120.0 | Unit:3260 | L3200×W1800×H2200 |
| Evaporator:2860×5 | L4800×W1000×H2250 |
| Cooling tower:1630 | 3050×H2780 |
| FIB-300D | 30.0 | R22/R404A | 113.550 | 150.0 | Unit:3500 | L3000×W2000×H2200 |
| Evaporator:2860×6 | L4800×W1000×H2250 |
| Cooling tower:2730 | 3300×H2785 |
| Standard condition: Dry ball temperature is 33 ℃ and water inlet
temperature is 20℃. |
If the ice is not for human consumption, and only for cooling
purpose such as fish, seafood, or long-distance transportation. You
also can consider the cheaper block ice machine- Brine cooling
system block ice making machine. We make 1ton 2ton 3ton 5ton 6ton 10ton 15ton 12 ton 20ton 25ton
30ton 50ton to 100ton brine system block ice making machine.
Stainless steel ice moulds for brine system block ice maker
Ice weight can be made according to your spec. This is the cheap
style block ice machine, you can send us emails to know more about
it. We can send you all the details and proposal.
