    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System

    Ask Lasest Price
    Supply Ability : 100 Set/Sets per Year
    Price : $30,000.00/sets >=1 sets
    • Product Details
    • Company Profile

    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System

    FOCUSUN
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System

    Our Company

    FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems.Our main products include all kinds of ice making machine,cold storage,vacuum cooler,snow making machine,mine cooling sysrtem,concrete cooling system,chemical reactor cooling system and more.


    With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

    Product Description
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System

    Features

    1.Patented UNI-EVEPTM procesiing technology ensures larger evaporaqtion area and higher cooling efficiency

    2.The part inside brine tank that touches brine water is made of SUS304 which bears low temperature and highly resists rusts.

    3.Particular can dumper and thawing tank design makes easier operation.

    4.Thawing tank is heated by air discharged from compressor to save much energy and suits for low water temperature area.

    5.Every brine block ice machine can be designed and built as per your specific requirements.

    MODE
    DAILY PRODUCTION
    REFRIGERANT
    ELECTRICITY POWER
    SIZE(L*W*H)
    FIB-100WHB
    10 TON
    R22
    34KW
    UNIT:L1800*W1000*H1450mm
    EVAPORATOR:L4800*W1000*H2250
    COOLING TOWER:Φ2000*H2410
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    SETTING INFORMATION
    Ice Making Theory
    Brine System
    Power Supply
    380V/220V
    Material
    stainless steel 304 and Galvanized steel
    Paiting
    Blue
    Ice Size
    5kg, 10kg, 15kg, 20kg, 25kg, 50kg



    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Detailed Images

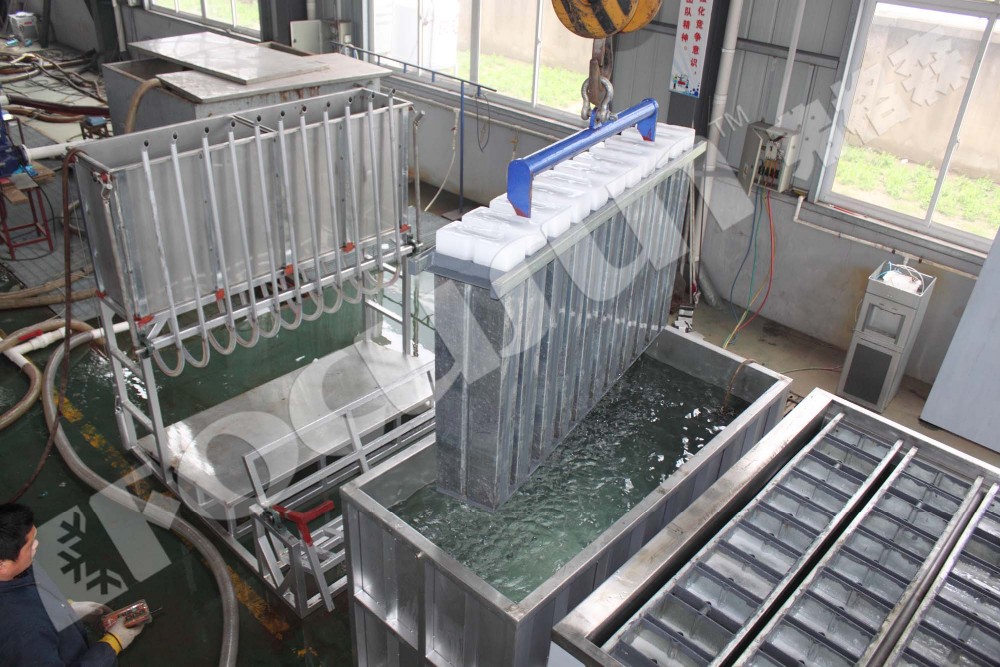

    Brine system block ice machine configuration

    1) Brine tank

    The stainless steel part between the brine water and the brine tank highly resists rust and it works well in a cold condition.Concrete brine tank is also suggestibale for some projects.

    2) Ice bucket

    Stainlessw steel 304 and galvanized steel are available.The later is chosen for cost-saving.

    3) Evaporator:

    Paktong tubes are used as evaporator coil to improve the heat transfer effect,and its stainlessness,anti-corrosion can guarantee the long service time.

    4) Agitator:

    Adjust the salt concentration to improve the heat exchange effect.

    5) Can dumper:

    Excellent design guarantees the ice-thawing efficiency.

    6) Thawing tank:

    Heated by hot gas discharged from the compressor so that it is more energy saving and suitable for low water temperature area.

    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Ice weight:
    5kg (125mm x 100mm x 600mm)

    10kg (155mm x 100mm x 750mm)

    15kg (185mm x 100mm x 750mm)

    20kg (245mm x 125mm x 750mm)

    25kg (315mm x 125mm x 750mm)

    50kg (480mm x 160mm x 750mm)
    Ice-making hours
    5kg 4~4.5hours

    10kg 4~4.5hours

    15kg 4~4.5hours

    20kg 6~6.5hours

    25kg 6~6.5hours

    50kg 9~9.5hours
    Usage
    For seafood, for fishery, all product needs a cooling effect
    Certifications
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Motor-driven 10 ton FIB-WHB Brine Cooling Block Ice Machine for Water-Cooling System
    Our Service

    1. OEM Manufacturing welcome: Product, Package...
    2. Factory visit
    3. We will reply you for your inquiry in 24 hours.
    4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.


    FAQ
    Q1. What is your terms of packing?
    A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.
    Q2. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance. You're welcome to see the test of the machines for days.
    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF.
    Q4. How about your delivery time?
    A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
    Q5.Can you produce according to the samples?
    A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.
    Q6. What is your aim?
    A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with reasonable price.
    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.
    Q8: How do you make our business long-term and good relationship?
    A:1.We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.


    Packing & Delivery

    Packaging Details:

    1. Standard wooden case.


    2. A complete tube ice maker contains: ice machine, cooling tower, water pump, water pipes and water pipe fittings.

    3. Machine comes into use, customer only need prepare power for the machine.

    4. All required components for installing the machine will be provided.

    Delivery Detail:45 Days
