    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    Ask Lasest Price
    Supply Ability : 100 Set/Sets per Quarter
    Price : $24,300.00/units 1-2 units
    • Product Details
    • Company Profile

    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    Product Description


    Compared with other kinds of ice, tube ice has the highest density which is pure,difficult to melt and completely conforms to food standards.It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, etc.
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    Main Features

    1)Pure German technology and years' research experience in refrigeration.
    2)Original Pre-Purify™ patented technology makes ice crystal.
    3)All equipment is made of 3D simulation assemble,compact structure, which makes it humanized to operate and maintain.
    4)Evaporator adopts SUS304,PE,and aluminum material
    5)PLC system controls the ice making process automatically.

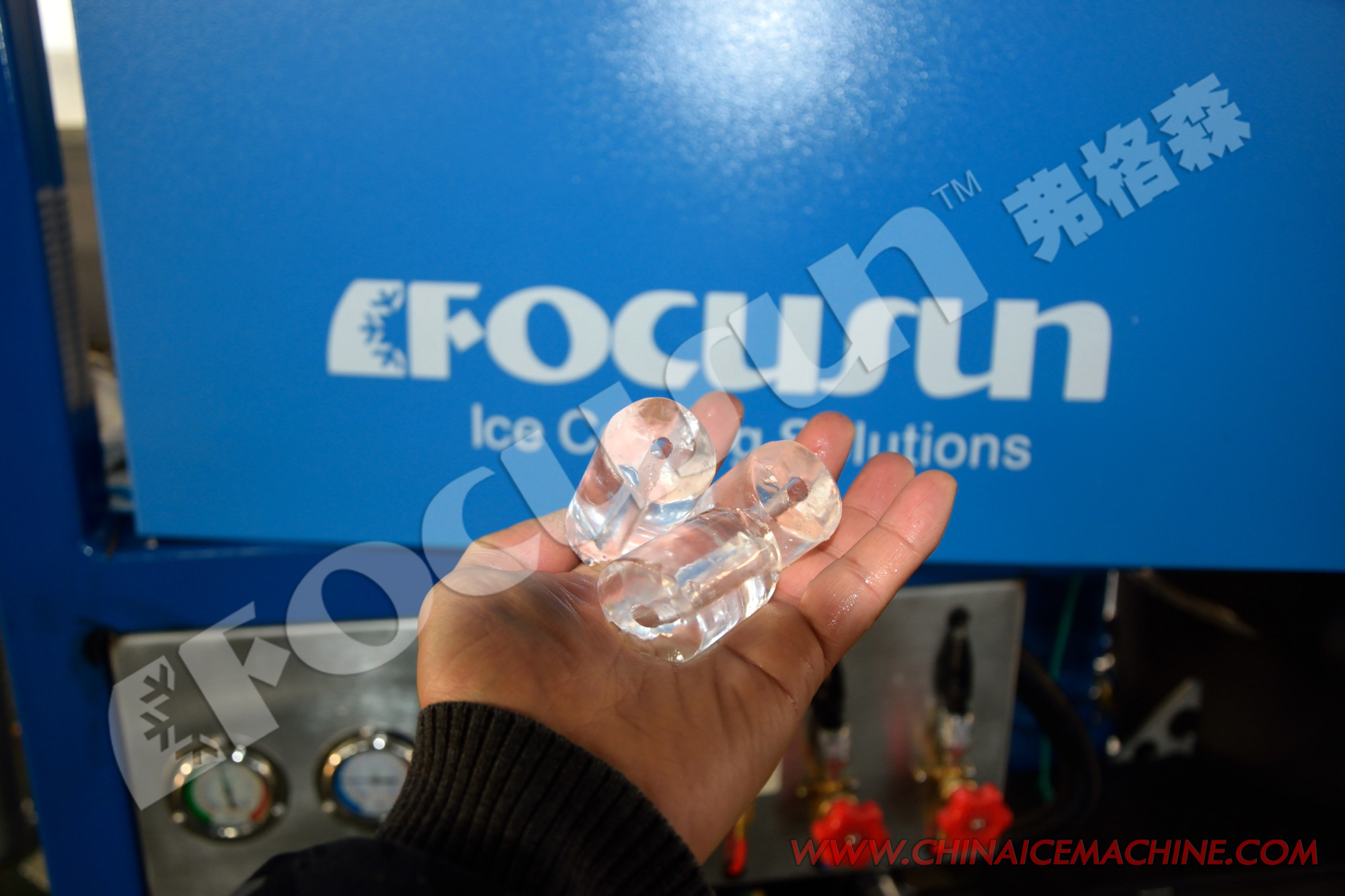

    Tube Ice Dimensions
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    Tube ice is a kind of hollow cylindrical ice with external diameter ø21、ø28、ø34mm and length 25~42mm. The hole diameter is usually ø5~10mm and it can be adjusted according to ice making time.
    Detailed Images
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production


    Name: Evaporator module

    The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .


    Main Features

    A complete unit with all equipment assembled in a steel frame except its cooling tower for water-cooling or air fan for air-cooling. It's suitable for container shipment, easy to ship, move and install. Right after connecting to an electric and water source, the machine can be put into use

    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    Machine Parts

    Name: Ice generator

    The main part of the tube ice machine is the ice generator, a vertical shell-and-tube vessel surrounded by a water tank. Special water distributors on top of each tube control an even,spiral supply of water down the inside of the tubes. Expess water is collected in a tank beneath the ice generator and pumped back up to the tank at the top .

    Ice Application

    Tube ice is widely used in hotels, restaurants, bars, flight kitchens, catering, concrete cooling, chemical industry processing, food production processing, fishing industry and a variety of laboratory and medical applications.

    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Product Specifications
    No
    Item
    Data
    1
    Electricity Consumption
    16.03kw
    2
    Installation Power
    20kw
    4
    Operating Weight
    1650kg
    5
    Equipment Size
    1700x1200x2200(LxWxH mm)
    6
    Refrigerant
    R404a/R22
    Product Configuration
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Bitzer compressor
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Simens PLC
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Danfoss Controller
    Smart APP

    Foucusun Direct Refrigeration Block Ice Machine is equipped with the smart APP,which can be an unique design in the Ice Making Machine.It will be much more convenient to operate the machine.
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    Focusun Inte-star Control System APP includes the following features:
    1.Check all running data and working status of the machine anytime and anywhere.
    2.Realize remote on/off operation and improve work efficiency.
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    3.Realize one-click report when find features,24hours fast response.
    4.Regular maintenance warning to protect your machine.
    Customer Site
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    On-set Installation in India
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    On-set Installation in Mali
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production

    On-set Installation in Oman
    Focusun Exhibition
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    Focusun 5 Ton Tube Ice Maker SUS304 Ice Tube Machine for Your Food Beverage Production
    FOCUSUN Developed the First Tube Ice Machine in the World traced back to 1929!
    Jüergen Hans invented the tube ice machine in 1929 and founded Külinda in 1932, becoming the only tube ice machine manufacturer in Europe. His son, A.P. Focusun, further developed the technology and obtained a US patent in 1939. In 1950, A.P. FOCUSUN founded Külinda (USA) in Albany, which later became the FOCUSUN Company. FOCUSUN adjusted its strategy in 2002 to focus on research and technology consulting and entered China by establishing Ferguson Refrigeration (Shanghai) Equipment Co., Ltd. The company expanded to new markets in Africa, the Middle East, and South America, becoming a widely recognized brand in the ice machine industry.
