    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Ask Lasest Price
    Brand Name : Focusun
    Supply Ability : 100 Set/Sets per Quarter
    Price : $41,420.00/units >=1 units
    • Product Details
    • Company Profile

    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Product Overview

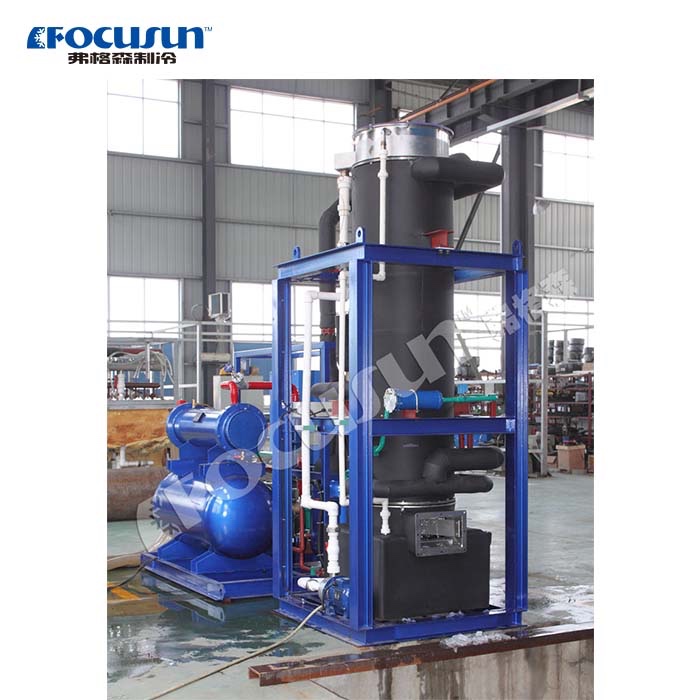

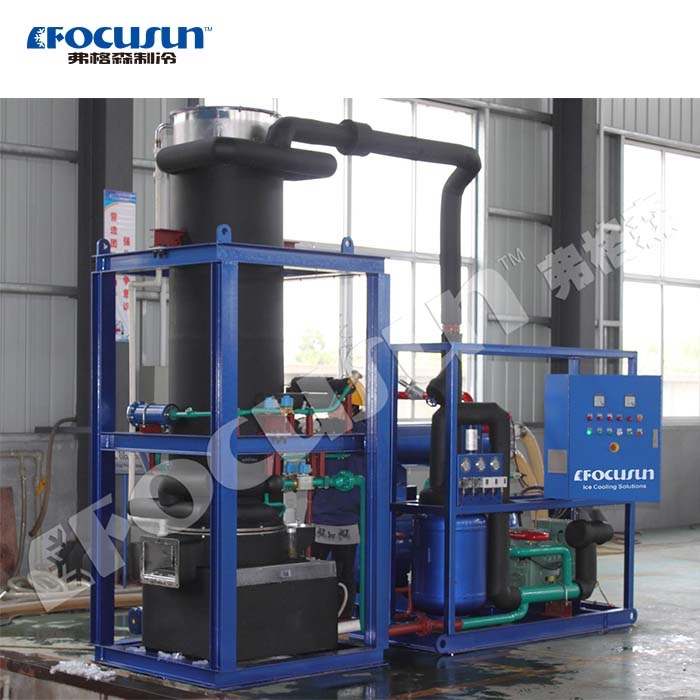

    10T Tube Ice Machine

    This tube ice machine can produce 10 tons of ice per day. The whole unit consists of 3 parts: evaporator, compressor and cooling tower. Dimension(L*W*H): Unit:L1800*W1500*H1600mm, evaporator:L1180*W1180*H3500mm, cooling Tower:Φ2000*H2410mm. Operating Weight: Unit:1560kg, evaporator:2296kg, cooling Tower:670kg.
    FEATURES AT A GLANCE

    Principle of ice making
    1. Tube ice is formed in a vertical shell-and-tube vessel by water passing down inside the tubes which are cooled by the
    circulation of refrigerant on the outer surface.
    2. As the ice falls from the tubes it is cut by the rotating ice cutter to a desired size. The ice tubes are about 50 mm in length
    and 21, 28, 34mm three options in external diameter.
    3. When the ice reaches the desired thickness, water will stop flowing automatically. The refrigerant is removed to a surge drum
    and hot gas is circulated around the tubes causing the ice tubes to melt and slide down.

    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor



    Advantage of the tube ice
    Compared with other kinds of ice, tube ice has the highest density which is pure, difficult to melt and completely conforms to
    food standards, It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep
    fresh,etc.



    Features
    1. Pure German technology and years’ research experience in refrigeration of Focusun.
    2. Original Pre-Purify ” patented technology makes ice crystal.
    3. All equipment is made of 3D simulation assembly, compact structure, which makes it humanized to operate and maintain.
    4. Evaporator adopts SUS304,PE,and aluminum material.
    5. PLC system controls the ice making process automatically.

    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor
    Some sides of tube ice machines.
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor
    PRODUCT SPECIFICATIONS
    No
    Item
    Data
    1
    Daily Capacity
    10T/24 H
    2
    Refrigerant
    R22/R404A/R507A
    3
    Installed Power
    45kw
    4
    Power Supply
    50/60Hz,220V/380V/440V, 3P
    5
    Operating Weight
    Unit:1560kg, Evaporator:2296kg,
    Cooling Tower:670kg
    6
    Dimension(L*W*H)
    Unit:1800*1500*1600mm, Evaporator:1180*1180*3500mm,
    Cooling Tower:2000*2410mm
    7
    Condenser
    Air cooling/Water cooling/Evaporative cooling
    SALES AND SERVICE NETWORK
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor
    Machines Provided by Focusun
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Focusun 10T/Day Tube Ice Machine

    Daily Capacity: 10T/24 H
    Refrigerant: R22/R404A
    Installed Power: 45kw
    Power Supply: 50Hz,380V, 3P
    Condenser: Air cooling/Water cooling/Evaporative cooling
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Focusun 15T/Day Flake Ice Machine

    Daily Capacity: 15T/24 H
    Refrigerant: R22/R404A
    Installed Power: 60kw
    Power Supply: 50Hz,380V, 3P
    Condenser: Evaporative cooling
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Focusun 30T/Day Block Ice Machine

    Daily Capacity: 30T/24 H
    Refrigerant: R22/R404A
    Installed Power: 150kw
    Power Supply: 50Hz,380V, 3P
    Condenser: Evaporative cooling
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Focusun Snowmaking Machine

    Daily Capacity: 4500KG/24 H
    Refrigerant: R404A
    Adjusting snowflake size: Variable Frequency Regulation
    Power Supply: 50Hz,380V, 3P
    Condenser: Air cooling/Water cooling
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Focusun 900KG/Day Cube Ice Machine

    Daily Capacity: 900kg/24 H
    Capacity of Ice Bin: 315kg
    Refrigerant: R22/R404A
    Power Supply: 50Hz,380V, 3P
    Condenser: Air cooling/Water cooling
    Large Capacity Focusun Tube Ice Machine with Superior Efficiency and Bitzer Compressor

    Focusun 10T/Day Cube Ice Machine

    Daily Capacity: 10 T/24 H
    Refrigerant: R22/R404A
    Condenser: Air cooling/Water cooling/Evaporative cooling
