Real Manufacturer Focusun 10ton Big Ice Block Making Machine
Focusun Direct technology advantage: not only for fish industry,
but also for human consumption; more automatically. Disadvantage:
just initial time investment is a little higher than brine
technology.
Brine technology advantage: price is lower. Disadvantage: only for
cooling purpose, can't be eaten; need more workers. Big brine tank
not easy for shipment, so it needs customer build it locally with
concreting
All parts of Focusun direct system block ice machine which contact
with water are made of SUS304 or aluminum alloy material. The
produced ice is clean and hygiene, complying with HACCP
certification requirement. Ice could be eaten directly.
Our engineer go all over the world to help you to install &
commission our block ice plant after you bought from us. Like in
India, Canada, middle east, South Africa, the Philippines, Brazil,
England, and Australia.

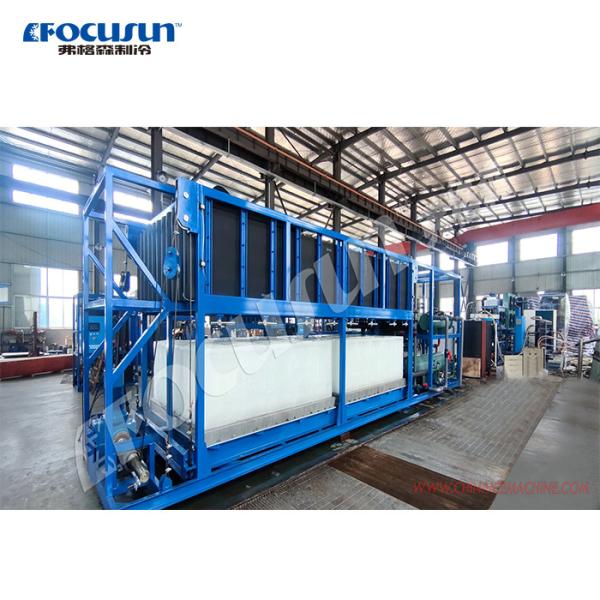

Big Capacity Focusun 10Tons/24hours Direct Cooling Block Ice
Machine |
Model | FIB-100WS |
Daily Capacity | 10Tons/24hours |
Cooling Mode | water Cooling Condenser |
Numbers of person to operate | 1 or 2 person to assist, it’s automatic |
Weight of block ice | Can choose 25kg or 30kg or 50kg |
Power consumption | Only 65KW to produce 1000kg of block ice |
Dimension of 10ton Block ice machine (I will send you the drawings and layout to check detail dimension) | Ice Machine Unit: L3200×W1800×H2200 |
Ice Evaporator: L4800×W1000×H2250 |
Cooling Tower: 3050×H2780 |
Refrigerant | R404A/R507 |
Block Ice Machine Work conditions:
1 All-in-one refrigeration systems.
2 Specially-designed evaporator, aluminum freezing plate, conforms
to food standards.
3 Clean and sanitary block ice, suitable for human consumption.
4. Also can be used for cooling, fish cooling ,etc.
5 The refrigerant can be used globally, in line with national and
international standards.
6 PLC controls and self-protects from breakdowns during water
filling, ice making and harvesting.
7 Production capacity: 1tons to 30tons (if you choose
non-containerized, no limitation about the largest capacity) with
block ice weight of 5kg, 10kg, 15kg, 20kg, 25kg and 50kg)
8. Pneumatic crawler conveying system, maximizing the protection to
the ice blocks during harvesting.
9. Bitzer compressor offers abundant compressing power and
guaranteed producing ice in the shortest period with less energy
consumption
10. Module design, the whole set consists of machine unit module,
evaporator module, and cooling tower module; easy to ship and
install; evaporator module can contain several parts in terms of
capacity.
Different deisgn of FOCUSUN Block ice machine
BLOCK ICE MACHINE WITH FORKLIFT DESIGN, CAN USE FORKLIFT TO MOVE
ONE BATCH OF ICE TOGETHER TO ICE STORAGE ROOM.
BLOCK ICE MACHINE WITH MOVING OUT DEVICE DESIGN:
BLOCK ICE CRUSHER AND BLOCK ICE CRUSHER WITH CONVEYOR
BLOCK ICE STORAGE ROOM
FOCUSUN EXHIBITION FAIR IN SHANGHAI
