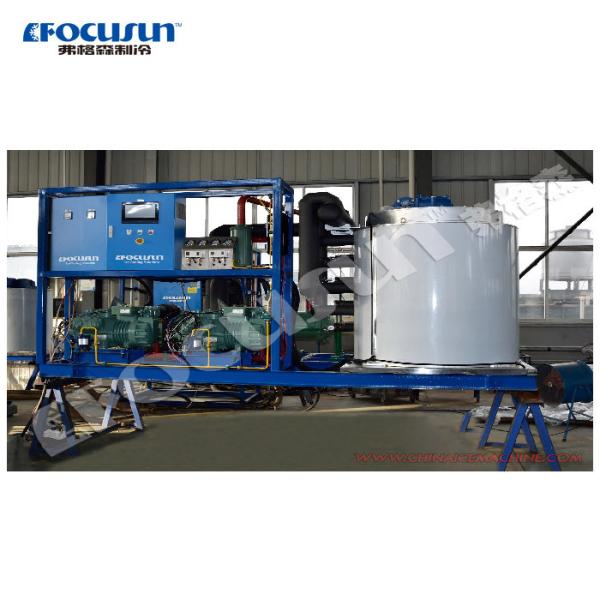

Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

Focusun Refrigeration Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers

    Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers
    • Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers
    • Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers
    • Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers
    • Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers
    • Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers
    • Buy cheap Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable from wholesalers

    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

    Ask Lasest Price
    Brand Name : FOCUSUN
    Supply Ability : 100 Case/Cases per Quarter
    Price : $31,999.00/sets >=1 sets
    • Product Details
    • Company Profile

    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

    About Focusun

    FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Product Description

    Product Application

    Irregular ice flakes with size about 40*40mm and thickness around 1.5-2.5mm.The thin ice can be directly used for stirring and mixing refrigerated materials.No acute edges and corners so it will not damage the surface of the cooled object.Large contact area and fast cooling speed,easy to crush and mold.
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

    Main Features

    1)Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant.
    2)Stainless steel materials, advanced processing equipment and heat treatment processing ensure the best heat transfer efficiency.
    3)The design of large water receiving plate can prevent water leaking at the bottom of evaporator.
    4)Photoelectric switch is directly installed at the bottom of evaporator to realize automatic control of full ice.
    5)Direct liquid feeding and dry evaporation, simple&safe to control.
    6)Integrated modular design, convenient to install and maintain.

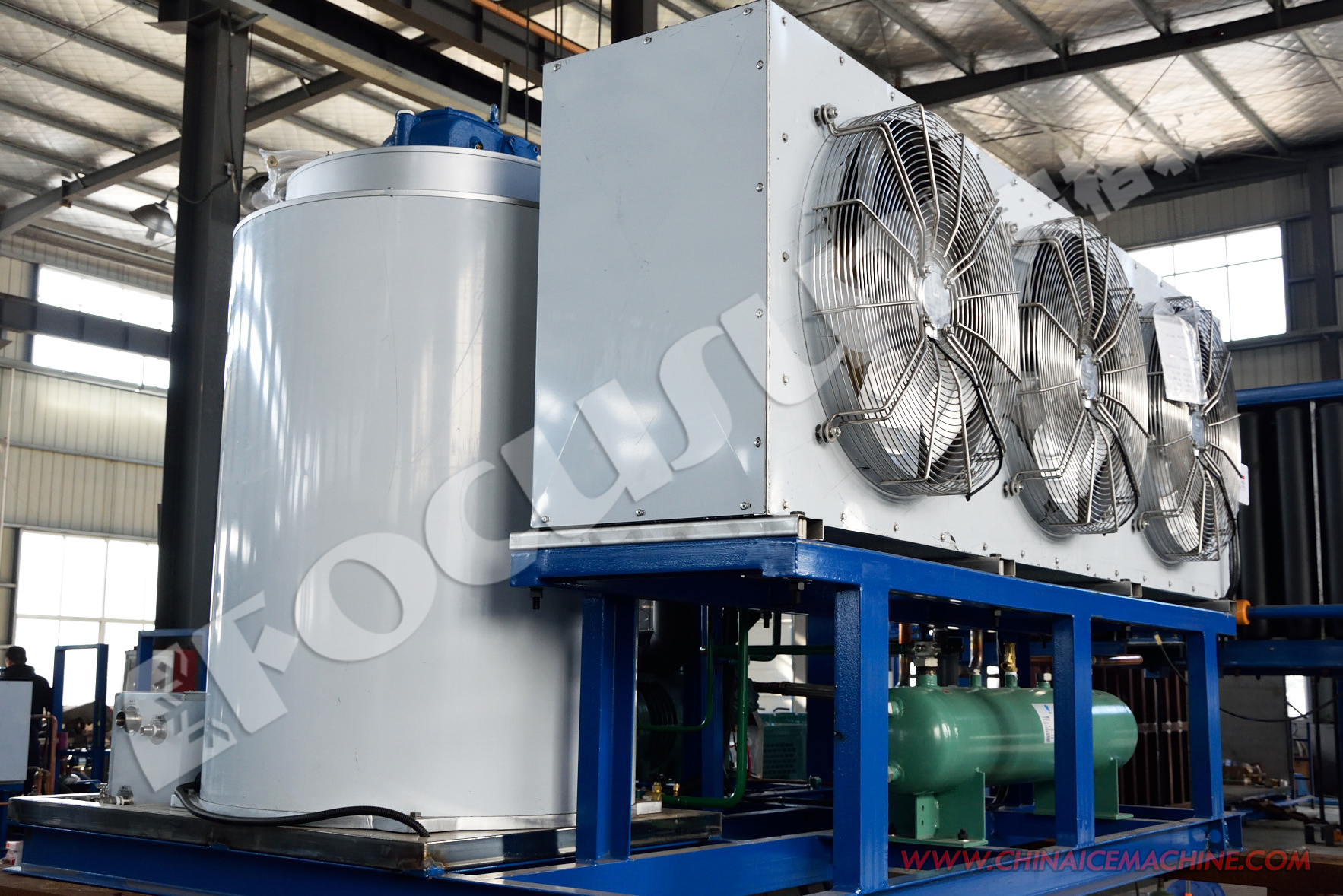

    Detailed Images
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

    Machine Parts

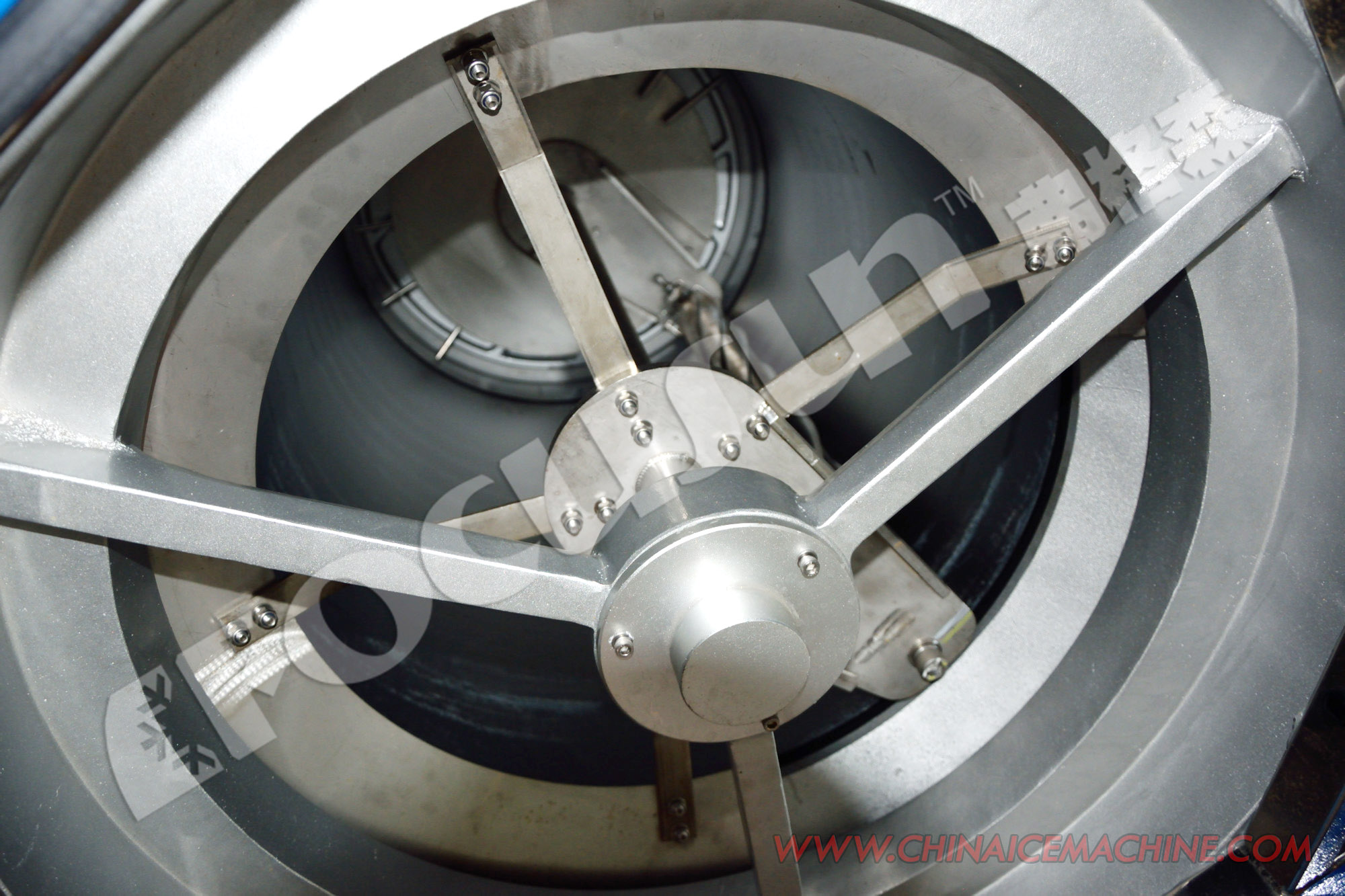

    Name: Flake ice evaporator

    The internal structure of the evaporator is specially designed to improve the heat-exchange efficiency and to keep the loop unblocked with special processing technology. The internally-scraping ice-making mode has been adopted, which reduces the loss of energy and avoids the leakage of refrigerant

    Machine Features


    1. Motor
    2. Refrigerant runner
    3. Water inlet
    4. Speed reducer
    5. Ice skates
    6. Water sprinkling pan
    7. Principle axis
    8. Water sprinkler
    9. Water return pipe
    10. Inner wall
    11. Insulation layer
    12. Ince outlet
    13. Low water pan
    14. Stainless steel wrapped sheet


    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable

    Ice Application

    Flake ice is used in concrete mixing, chemical and dye industries, artificial ice snow engineering and artificial skiing field application, dairy production, poultry processing, fruit and vegetable preservation, aquatic processing, meat processing, supermarket preservation.

    Standard working condition


    Dry bulb temperature is 33 celuis and water inlet temperature is 20 celuis. The above mentioned parameter will be changed subject to technical innovation without further notic.

    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Specification
    item
    value
    Condition
    New
    Applicable Industries
    Hotels, Manufacturing Plant, Farms, Restaurant, Construction Works
    After Warranty Service
    Video technical support, Online support, Spare parts, Field maintenance and repair service
    Local Service Location
    none
    Showroom Location
    none
    Video outgoing-inspection
    Provided
    Machinery Test Report
    Provided
    Marketing Type
    New Product 2020
    Warranty of core components
    3 years
    Core Components
    compressor
    Type
    COMPRESSOR
    Place of Origin
    China
    Brand Name
    FOCUSUN
    Certification
    ce
    After-sales Service Provided
    Online support
    Warranty
    15 MONTHS
    Color
    Blue
    Product name
    fresh flake ice maker
    Application
    making ice
    Refrigerant
    R404a/R22/R507
    Compressor
    Bizter
    Voltage
    380V-440V/3Ph/50HZ-60HZ
    Key words
    Flake ice
    Material
    Carbon Steel inside sus304 outside
    Consenser
    air cooling condenser
    FAQ
    1. who are we?
    We are based in Shanghai, China, start from 2009,sell to Western Europe(12.50%),Eastern Asia(12.50%),Mid East(12.50%),Oceania(12.50%),Africa(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 501-1000 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Tube Ice Machine,Flack Ice Machine,Block Ice Machine,Plate Ice Machine,Cube Ice Machine

    4. why should you buy from us not from other suppliers?
    First inventor of Tube Ice Machine in 1929; Over 80 years of experience of engineering and manufacturing in refrigeration industry; Cost-effective Machines: German Technology but with Chinese Price; Own 18 patented refrigeration technologies;

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDU,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
    Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French
    Our Service

    1. OEM Manufacturing welcome: Product, Package...
    2. Factory visit
    3. We will reply you for your inquiry in 24 hours.
    4. After sending, we will track the products for you at proper time, until you get the products. When you got the goods, our engineer for the installation and offer training till you 100% give a satisfication. If you have any questions about the problem, contact with us, we will offer the solve way for you.

    Certifications
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
    Packing & Delivery

    PACKING DETAILS

    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

    Focusun 10ton Flake Ice Machine for Cooling Fresh Water at Affordable
