Name: Evaporator module
The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .
Sign In | Join Free | My himfr.com |
|
Ask Lasest Price | |
Brand Name : | FOCUSUN |
Supply Ability : | 60 Unit/Units per Quarter |
Price : | $23,600.00/units >=1 units |
Tube ice is formed in a vertical shell-and-tube vessel by water
passing down inside the tubes which are cooled by the circulation
of refrigerant on the outer surface.
Tube ice maker machine Features:
Use hot Freon gas to make ice fall off fast with the whole process
takes only 150~180 seconds.
After the ice is off, the water of low temperature is used for
ice-making, saving energy consumption and increasing the volume of
production of ice.
With the unique water distributive pan and air mouth, the water can
evenly flow on the tube wall of the evaporator spirally, so it
improves the efficiency of heat transfer.
The use of stainless steel SUS304,aluminum alloy plate-type
evaporator, accords with the health and safety requirements.
The use of air pressure control excludes the risk of rupture of the
evaporator tube and the tube ice diameter can be adjusted according
to customers' needs.
Half-full liquid: liquid level controller which manages liquid
supply of refrigerant makes the system more stable.
Name: Evaporator module
The evaporator and its accessories are installed on a steel frame which forms the evaporator module. When transporting , place the evaporator horizontally and stand it upright when installing .

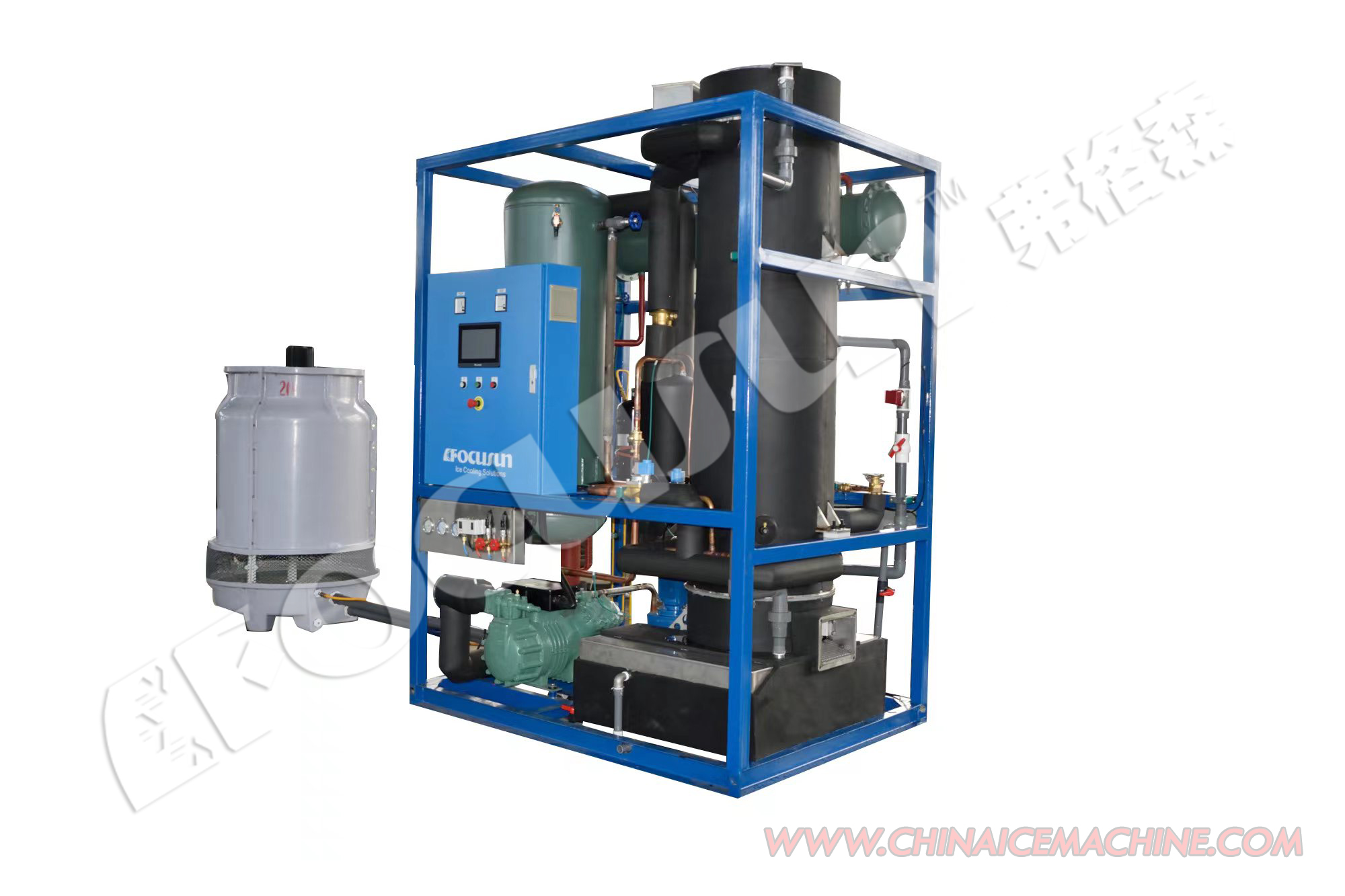

Acomplete unit with all equipments assembled in a steel frame
except its cooling tower for water-cooling or air fan for
air-cooling. It's suitable for container shipment, easy to ship,
move and install. Right after connecting to an electric and water
source, the machine can be put into use
Name: Ice generator
The main part of the tube ice machine is the ice generator, a
vertical shell-and-tube vessel surrounded by a water tank. Special
water distributors on top of each tube control an even,spiral
supply of water down the inside of the tubes. Expess water is
collected in a tank beneath the ice generator and pumped back up to
the tank at the top .
Tube ice is widely used in hotels, restaurants, bars, flight
kitchens, catering, concrete cooling, chemical industry processing,
food production processing, fishing industry and a variety of
laboratory and medical applications.
The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request.
FOCUSUN is a pioneer in the fields of ice making and vacuum
pre-cooling. We specialized in designing and manufacturing all
kinds of high quality ice machines and cooling systems. With the
technology and experience accumulated over the years, we use
advanced technology of refrigeration and mechanical transmisson to
provide quality service to more than 11,000 professional clients in
56 countries around the world.
