2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life

Focusun Refrigeration Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers

    Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers
    • Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers
    • Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers
    • Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers
    • Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers
    • Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers
    • Buy cheap 2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life from wholesalers

    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life

    Ask Lasest Price
    Brand Name : Focusun
    Supply Ability : 100 Set/Sets per Quarter
    Price : $88,620.00/units >=1 units
    • Product Details
    • Company Profile

    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life

    Product Description
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Product Paramenters
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Working principle
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Tube ice making process
    The tube ice is formed in the shell and tube evaporator. Water flows along the inner wall of the evaporator to exchange heat with the refrigerant, cool down and form ice.

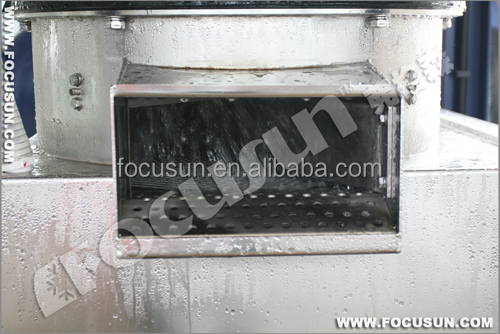

    When the pipe ice falls, the ice cutting mechanism operates to cut the pipe ice into the set size.
    When the thickness of pipe ice reaches the expected value, the water automatically stops flowing. The refrigerant hot gas will flow into the evaporator and circulate around the pipe ice, making the pipe ice melt and fall off.
    Machine structure
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Ice generator
    The main part of the tube ice machine is the ice generator , a vertical shell-and-tube vessel surrounded by a water tank. Special water distributors on top of each tube control an even , spiral supply of water down the inside of the tubes. Excess water is collected in a tank beneath the ice generator and pumped back up to the tank at the top.
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Bitzer compressor
    With 75 years' rich experience in compressor innovation , not only Bitzer compressor brings Focusun ice machine high refrigerating performance , but also trust from the customer in Focusun ice machine.
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Danfoss solenoid valve and controller equipment
    Danfoss' s fineness in solenoid valve and controller equipment brings Focusun ice machine incomparable overall performance and high efficiency.
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Siemens PLC controller
    Equipped with Siemens PLC controller, Focusun ice machine has the most reliable and steady electric operation .
    Equipment Feature

    The tube ice machine features:

    1.With more than 80 years of refrigeration development history, it is made by pure German technology. 2.The world's original Pre - Purify patented water purification technology makes ice crystal clear.
    3.All equipment adopts 3D simulation assembly, which is compact in structure and more user-friendly in operation and maintenance. 4.The evaporator is made of SUS304, PE, aluminum alloy and other materials, and its sanitary level reaches the international standards. 5.The compressor condensing unit is equipped with heat exchanger, temperature controller and control of return gas superheat, return oil, etc. to obtain the highest C. O. P value. 6.PLC computer module automatically controls the whole process of ice making.

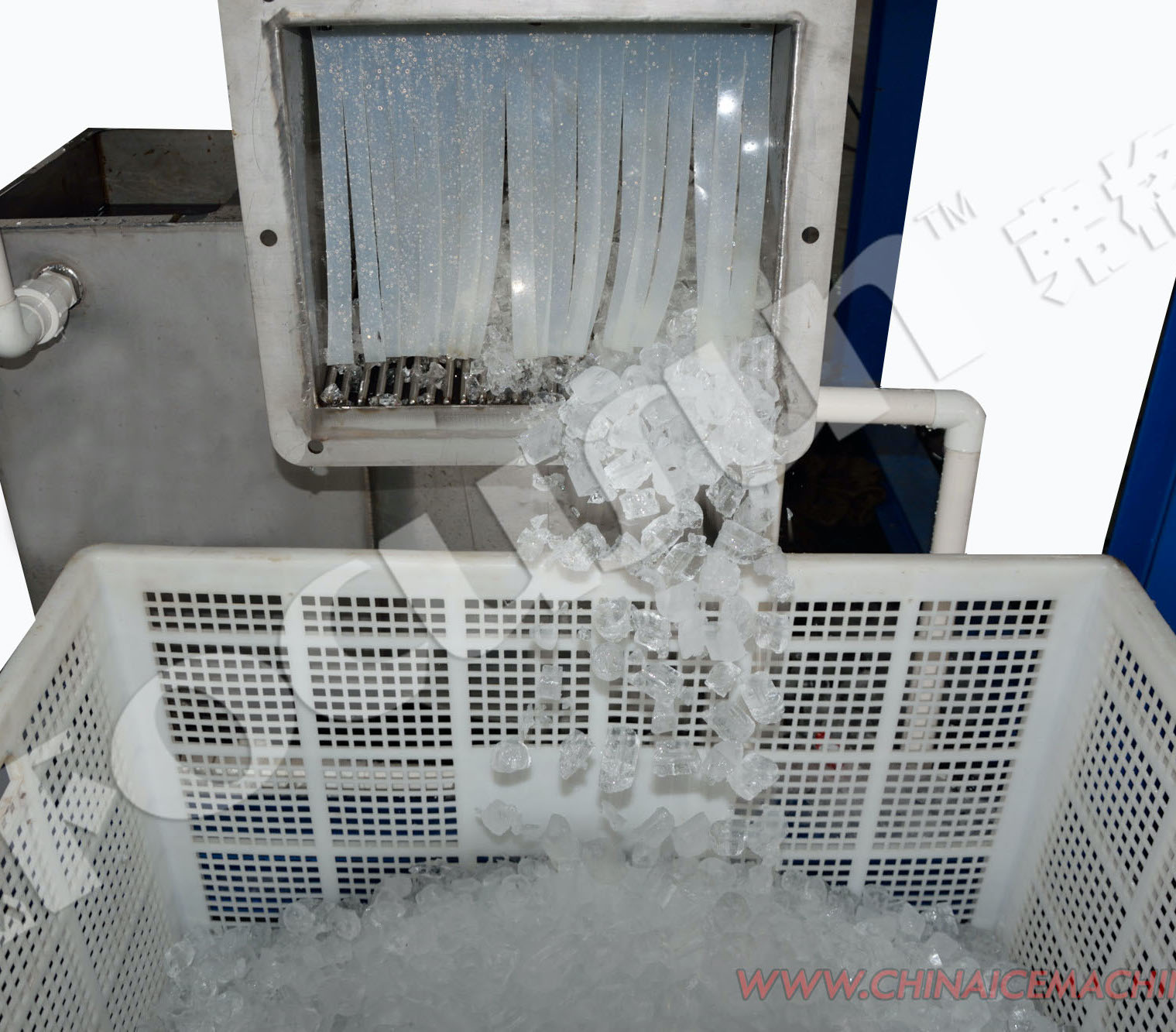

    Tube ice
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    Tube ice is a kind of regular hollow cylindrical transparent ice. Its external diameter can be divided into three specifications such as Ф22, ф29 and Ф35mm, ranging from 25~50mm long. The inner hole diameter, typically ф5~10mm can be adjusted according to ice-making time. It has a good air permeability and long storage life.
    Focusun tube ice directly formed by freezing clean fresh water has the features of tasteless, sanitary, transparent and completely conforms to food standards. It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh etc.
    About Focusun

    Focusun is a pioneer in the fields of ice making and vacuum pre-cooling. We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 11,000 professional clients in 56 countries around the world.

    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    2200*2000*1800mm Tube Ice Maker with 20 Tons Daily Production and Long Service Life
    FAQ
    1. who are we?
    We are based in Shanghai, China, start from 2009,sell to Western Europe(12.50%),Eastern Asia(12.50%),Mid East(12.50%),Oceania(12.50%),Africa(12.50%),Eastern Europe(12.50%),South America(12.50%),North America(12.50%). There are total about 501-1000 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Tube Ice Machine,Flack Ice Machine,Block Ice Machine,Plate Ice Machine,Cube Ice Machine

    4. why should you buy from us not from other suppliers?
    The first inventor of Tube Ice Machine in 1929; Over 80 years of experience in the refrigeration industry; Cost-effective, high-quality Machines made with German Technology ; Owning 18 patented refrigeration technologies;

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDU,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Cash;
    Language Spoken:English,Chinese,Spanish,Portuguese,German,Arabic,French
