    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    Ask Lasest Price
    Brand Name : Focusun
    Certification : CE
    Supply Ability : 100 Set/Sets per Quarter
    Price : $25,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    Company Information
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    FOCUSUN---Cooling Technical Master   Since 1929, Germany

    As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world.
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    Product Application

    Our tube ice machine is both used in customer consuming and cooling systems, and it's also widely used in restaurants, fast-food stores, supermarkets, healthcare centers, schools, Night clubs & bars, meat plants etc.
    This tube ice machine is environmentally safe, using Freon refrigerant. All surfaces that contact with water (including the cover) are stainless steel.



    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    Technical parameter

    Subject
    Power supply Voltage/Phase/Frequency 380V/3P/50Hz
    Refrigerant R22 or R404A
    Capacity Kg/day 5000
    Temperature Ambient temperature ℃ 35
    Water inlet temperature ℃ 20
    Operating power Total running power Kw 16.03
    Installment power Kw 20
    Operating power of cutter Kw 0.37
    Operating power of cold water pump Kw 0.55
    Compressor Manufacturer Bitzer
    Refrigeration capacity Kw 36.4
    Operating power Kw 13.51

    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    Main Features

    Salient Features of Big Capacity Tube Ice Machine:
    - Capacities offered: 1, 000Kgs/24H to 60, 000Kgs/24H.
    - Simple design/engineering.
    - No requirements of skilled workers.
    - High durability, minimal maintenance.
    - High energy efficiency.
    - SS304 stainless steel tube ice machine
    - Water Distributors: Made up of elastic material which creates a continuous and uninterrupted peripheral seal between the tube ends and water distributor.
    - Refrigerant: R22/R404a
    - Freezer: High quality stainless steel for all water and ice contacting surfaces which are corrosion resistant and easy to clean.
    - Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of cutter and using a switch on the control panel that controls this function.
    - Cutter Motors: Built with heavy duty design to give years of reliable ice-cutting service
    - Pumping Tank (Water Pumps): Centrifugal casting iron pump is large enough to circulate the quantity of water to be frozen for many times and produce crystal clear ice.
    - Control Panel: Access to the automatically electrical system which performs sequences of freezing and thawing precisely and dependably year after year.

    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Detailed Images
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Machine Part 1
    Name: Electric Control Cabinet
    Germany Bitzer compressor, Danfoss valves, Schneider electronics, ect, all are famous brand to keep the long term stable runing
    Machine Part 2
    Name: Evaporator
    In tube ice machine, the evaporate is inte-grated into tube ice generator, a vertical shell-and-tube vessel covered by a water tanks at the top and bottom with a water distributor and water collection. It takes vertical standing up design. This simple and unique design not only make it look gorgeous, but also realize high running efficient, reducing the ice freezing time and savin water.
    All thanks to Focusun founder, Juergen Han who innovated the first world industrial tube ice machine for human consumption.
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

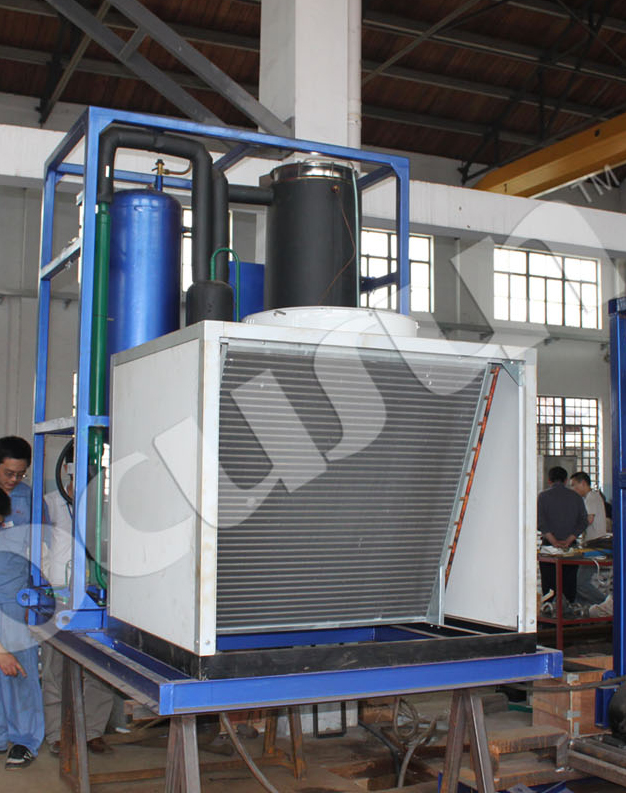

    Machine Part 3
    Name: Air cooler
    For mall capacity tube ice machine, it takes the air cooling way to cool the refrigerant, which is consistent with all part
    compacted into one framework.
    Certifications
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance
    Our Service
    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.



    Also other products:
    Focusun flake ice plant series: http://www.flake-ice-plant.com/
    Focusun tube ice plant series: http://www.tube-ice-plant.com/
    Focusun block ice plant series: http://www.block-ice-plant.com/
    If you are considering to purchase an block ice machine, or you are just want to know information about the block ice machine and prepare your business for future, please feel free to contact Focusun sales team.
    To make customer have better understanding, our Focusun company launched a new website and totally explains the different block ice machines. Can you visit here : http://www.block-ice-plant.com
    We are very interested to have your inquiry.
    We are looking forward to give our best supports.
    We are also welcome your visit to FOCUSUN CHINA FACTORY to have face-to-face meeting with our engineering
    team.

    Energy Mining 5 Ton Tube Ice Machine Evaporator with Bitzer Compressor and Performance

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.
