50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

Focusun Refrigeration Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers

    Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers
    • Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers
    • Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers
    • Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers
    • Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers
    • Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers
    • Buy cheap 50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided from wholesalers

    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Ask Lasest Price
    Brand Name : Focusun
    Certification : CE
    Supply Ability : 100 Set/Sets per Quarter
    Price : $110,000.00/sets 1-1 sets
    • Product Details
    • Company Profile

    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Company Information
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    FOCUSUN---Cooling Technical Master Since 1929, Germany

    As one of the most professional ice machine manufacturers in the world, Focusun always develops high refrigeration technology with innovation. Our R&D center is located in Jiangsu Province, China, with more than 35,000 square meters of standardized modern factory and advanced product testing platform. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, water chiller, concrete cooling system, automatic ice storage system, dynamic ice storage system and all kinds of cold rooms. Over a decade, we have provided quality service to more than 16,000 professional clients in 88 countries around the world.
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    Product Description

    Product Application

    Our tube ice machine is both used in customer consuming and cooling systems, and it's also widely used in restaurants, fast-food stores, supermarkets, healthcare centers, schools, Night clubs & bars, meat plants etc.
    This tube ice machine is environmentally safe, using Freon refrigerant. All surfaces that contact with water (including the cover) are stainless steel.



    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Subject Unit Technical parameter
    Power supply Voltage/Phase/Frequency 380V/3P/50Hz


    Refrigerant R22 or R404A


    Capacity Kg/day 5000

    Temperature Ambient temperature ℃ 35

    Water inlet temperature ℃ 20

    Operating power Total running power Kw 16.03

    Installment power Kw 20

    Operating power of cutter Kw 0.37

    Operating power of cold water pump Kw 0.55

    Compressor Manufacturer Bitzer

    Refrigeration capacity Kw 36.4

    Operating power Kw 13.51

    Compressor COP/EER Kw/kw 2.7

    Horse power Hp 25

    Condenser Fan power Kw 1.6

    Cooling way Air cooling

    Dimension Size of ice maker (L×W×H)(mm) 1700×1200×2200

    Size of condenser (L×W×H)(mm) 1400×1250×1350

    Size of water feeding pipe 1/2"

    Weight of unit Operating weight of tube ice maker Kg 1460

    Operating weight of condenser Kg 150

    Water supply pressure requirement Bar 1


    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Main Features

    Salient Features of Big Capacity Tube Ice Machine:

    - Capacities offered: 1, 000Kgs/24H to 60, 000Kgs/24H.

    - Simple design/engineering.

    - No requirements of skilled workers.

    - High durability, minimal maintenance.

    - High energy efficiency.

    - SS304 stainless steel tube ice machine

    - Water Distributors: Made up of elastic material which creates a continuous and uninterrupted peripheral seal between the tube ends and water distributor.

    - Refrigerant: R22/R404a

    - Freezer: High quality stainless steel for all water and ice contacting surfaces which are corrosion resistant and easy to clean.

    - Cutter: Stainless steel cutters driven by gear motors are uniquely designed to produce both cylindrical and crushed ice simply by reversing the motor of cutter and using a switch on the control panel that controls this function.

    - Cutter Motors: Built with heavy duty design to give years of reliable ice-cutting service

    - Pumping Tank (Water Pumps): Centrifugal casting iron pump is large enough to circulate the quantity of water to be frozen for many times and produce crystal clear ice.

    - Control Panel: Access to the automatically electrical system which performs sequences of freezing and thawing precisely and dependably year after year.


    Detailed Images
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Machine Parts

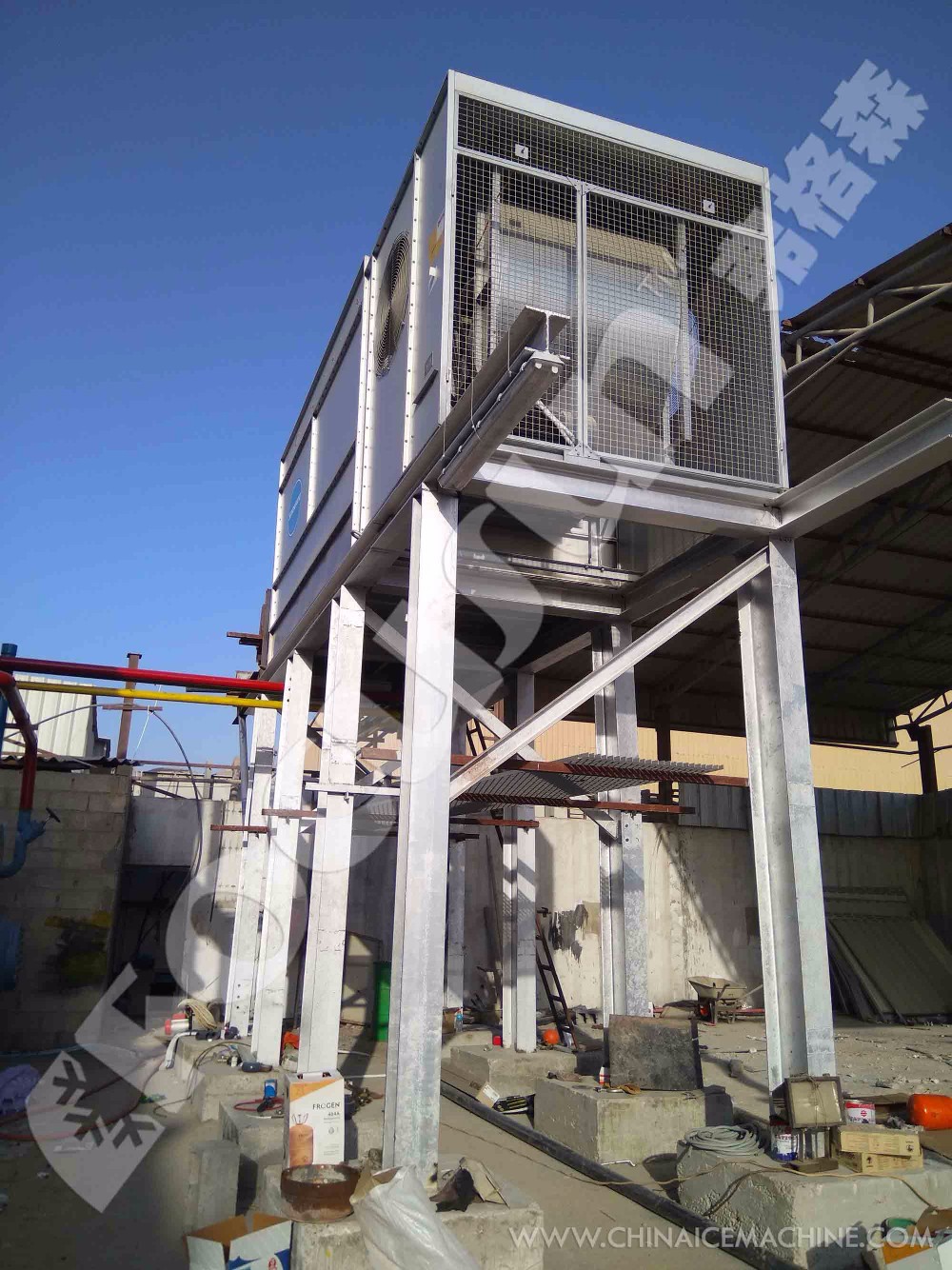

    Name: water cooling condenser

    Brand: XUEMEI

    Original: CHINA


    Machine Parts

    Name: TUBE ICE EVAPORATOE
    Brand: FOCUSUN
    Original: Germany


    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Machine Parts

    Name: Electric Box
    Brand: Schneider, Danfoss, Siemens
    Germany Bitzer, Siemens PLC, Schneider electric, Danfoss valve etc all are famous
    suppliers.

    Machine Parts

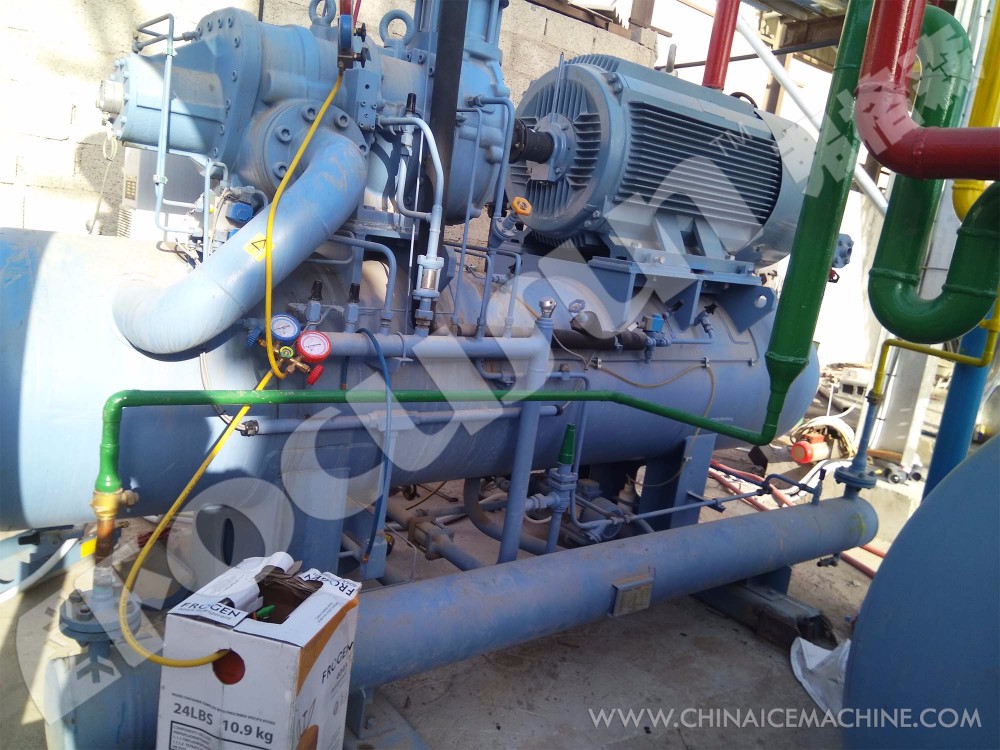

    Name: compressor
    Brand: BITZER
    Original: Germany

    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    Our Service
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided
    50 Ton Tube Ice Machine for Cooling Foodstuffs Video Outgoing-Inspection Provided

    Pre-Sales Service

    * Inquiry and consulting support.

    * Sample testing support.

    * View our Factory.




    Also other products:
    Focusun flake ice plant series: http://www.flake-ice-plant.com/
    Focusun tube ice plant series: http://www.tube-ice-plant.com/
    Focusun block ice plant series: http://www.block-ice-plant.com/
    If you are considering to purchase an block ice machine, or you are just want to know information about the block ice machine and prepare your business for future, please feel free to contact Focusun sales team.

    To make customer have better understanding, our Focusun company launched a new website and totally explains the different block ice machines. Can you visit here : http://www.block-ice-plant.com


    We are very interested to have your inquiry.
    We are looking forward to give our best supports.
    We are also welcome your visit to FOCUSUN CHINA FACTORY to have face-to-face meeting with our engineering
    team.

    After-Sales Service

    * Training how to instal the machine, training how to use the machine.

    * Engineers available to service machinery overseas.



    Packing & Delivery

    PACKING DETAILS

    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
