FP-01A is designed to meet the food standard. All products contacted area is
covered by high quality SUS304.
It is multi-functional, can be used in different products
packaging. Easy to use, finger controlled style, super intelligent,
high performance in both speed and accuracy--All in one machine,
Focusun designed.
The whole process is controlled by a touch screen monitor which
complied with a LPC computer Japan. All information includes
running state, operation order, error state, production data
processing are display by the touch screen. You dont need to pause
the production for revising parameters and adjusting position.

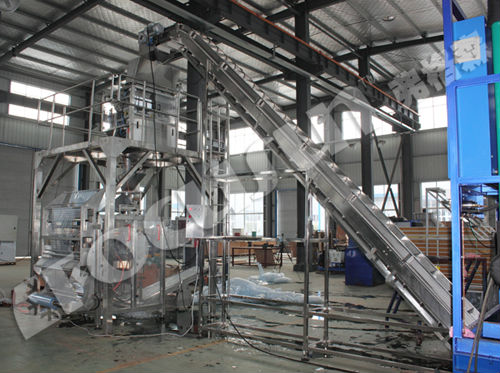

Focusun, FP-01A is utilizing a Z-type conveyor loader. I will
significantly minimize the damage to ice. Auger type is available
for alternative customizing.
It contains a single weighing head, or multiple weighing heads for
optional choices. The single weighing heads configuration is
capable to process 1.8 tons tube/ cube ice per hour. Free choice
for packaging size from 0.1Ks to 5Ks. Its stable and accurate
performance of film pulling has been achieved by utilizing an AC
Alternating Current servo motor. Also it doesnt need to be
lubricated.
FP-01A has equipped with a programmed temperature sensor which can
control the hot sealing temperature and timing. The zigzag shape
sealer can also print the lot number on the package. Finished
package will be in envelop type (pillow type and block bottom type
are optional).
System structural components:
Vibration feeder
Loading conveyor (Auger for alternative)
Computer complete weight balance
LCD control board

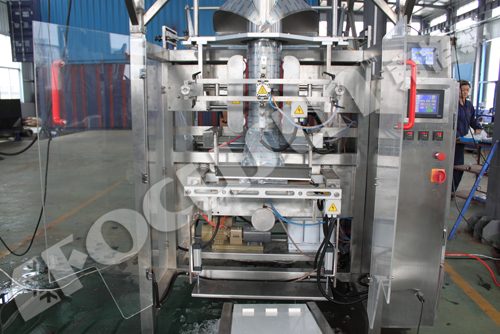

Vertical form fill seal machine
Output conveyor
Check weight balance
Metal detector
Rotary collection table
System configuration:
Main alternator: Panasonic (Japan)
PLC: Panasonic (Japan)
LCD display: Panasonic (Japan)
Compressor: AIRTAC (Taiwan)
Sensor: Omron (Japan)
Switch board: Chint (China)
Specification:
| MEASUREMENT L×W×H mm | NET WEIGHT Kg | GROSS WEIGHT Kg | VOLUME CBM |
Packaging section | 1200*1200*1800 | 420 | 480 | 2.6M3 |
Weight balance | 1600*1100*1000 | 200 | 250 | 1.8M3 |
| 2500*700 | 350 | 380 | 1.8 M3 |
Power220v 50Hz 1.8kw
Film width: 350mm
Metering speed: 12bag/min
Air consumption: 0.7Mpa 20L/min
Weighing accuracy: ± 0.1%
Metering capacity2-5Kgs
Perfect service system:
All Focusun ice machines come out with 15 months full warranty. If
the machine breaks down in 15 months, Focusun will send the parts
for free, even send the technician over if situation needed. When
beyond the warranty, Focusun will supply the parts and service only
for factory cost. |
| Process: | Please provide the copy of Sales Contract and describe the problems
appeared. |
| Problems confrimation: |
| Slight problem: | Please send the proof to our After-Sales Department, we will reply
within two days. |
| Serious problem: | |
| A | We will dispatch our Quality and Problems Appraisers to make a
confirmation. |
| B | Have a negotiation of the compensation and sign agreements |
| C | Our After-Sales Department will perform the duties as the agreement |
