    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity

    PRODUCT OVERVIEW
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity

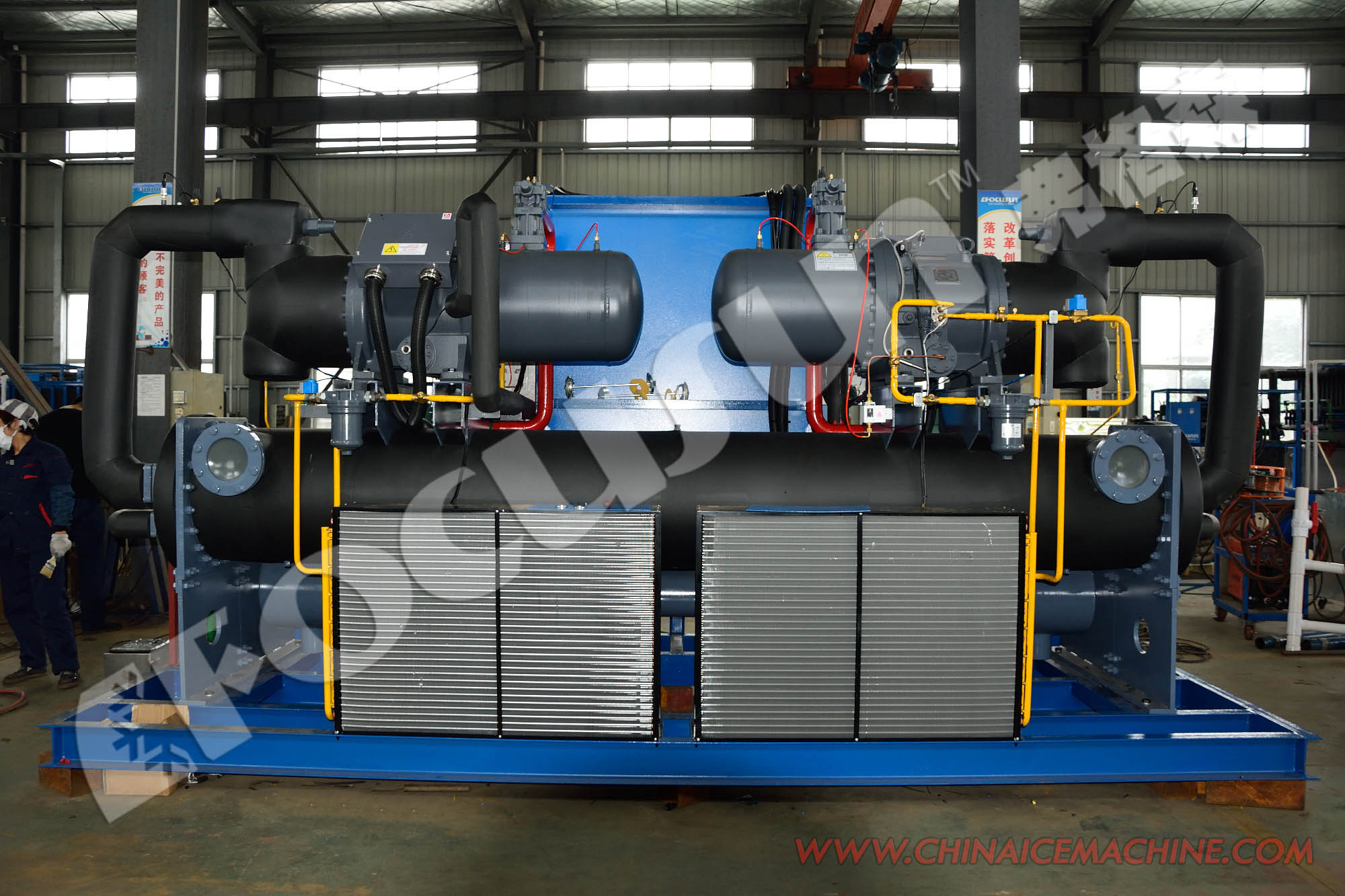

    Screw Chiller
    As with all chiller systems, screw chillers consist of an evaporator, expansion valve, refrigerant, internal piping and controls. Their compressor is the main point of difference in screw chillers, which use two helical rotors to drive and compress the refrigerant gas. This type of chiller has an almost constant flow performance and is powered by an electric motor, steam or gas turbine. They range in capacity from 25 to 800 tonnes and are effective when used with liquids with higher evaporation temperatures.
    FEATURES AT A GLANCE
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity


    Point I


    The unit adopts a semi-closed screw compressor. The compressor adopts a 5:6 asymmetric high-efficiency screw rotor, which is graded or steplessly energy regulated. It is automatically adjusted according to load changes and is more energy efficient.



    Point II

    The unit heat exchanger adopts high-efficiency heat exchange tube to improve the cooling efficiency. At the same time, in order to reduce the lubricating oil entering the heat exchanger, the unit increases the secondary oil content, minimizes the amount of oil entering the heat exchanger, and passes the specially designed ejector. The oil return device directs the lubricating oil in the heat exchanger back to the compressor to improve the refrigeration efficiency of the unit and also improve the reliability of the unit operation.

    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity



    Point III


    The unit is equipped with multiple protections to make the unit operate safely and reliably. The unit adopts a direct cooling
    mode, which reduces the loss caused by the intermediate heat exchange and greatly reduces the running cost.
    Environmentally friendly 134a refrigerant is used to improve unit operating efficiency. The unit is equipped with multiple
    protections to make the unit safe and reliable.

    OUR COMPANY
    Focusun Refrigeration(China) Corporation
    Focusun™ is specialized in designing and manufacturing ice making machines. Excellent technology, fabulous quality and premium service are the competences help us to gain the leading position of the industry.
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    CUSTOMER ON-SITE
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    PRODUCT SPECIFICATIONS
    Model
    FWC
    Capacity
    1,000- 360,000 kgs/24 hours
    Measurement(mm)
    Tailor Made
    Weight
    As drawing
    Volume
    As drawing
    Water Type
    Country Water/ Ground Water/ Sea Water Optional
    Water Outlet Temperature
    Min. 2c
    SALES AND SERVICE NETWORK
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    SIMILAR PRODUCTS
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    FOCUSUN CERTIFICATES
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity

    OUR SERVICE

    Installation:
    1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual are provided to guide the installation.
    2).Installing by FOCUSUN engineers:
    * (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
    * (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared.
    Meanwhile, we will provide you a Tool List with the machine when delivery.
    * (3) All spare parts are provided according to our standard.
    * (4) 2~ 3 workers are required to assist the installation for big project.
    Heavy Duty Water Chiller for Industrial Concrete Cooling System 1000 KG Capacity
