About Focusun.

FOCUSUN is a pioneer in the fields of ice making and vacuum pre-cooling. With the technology and experience accumulated over the years, we use advanced technology of refrigeration and mechanical transmisson to provide quality service to more than 18,000 professional clients in 88 countries around the world.We specialized in designing and manufacturing all kinds of high quality ice machines and cooling systems.

Our main products include all kinds of ice making machine,cold storage,vacuum cooler,snow making machine,mine cooling system,concrete cooling system,chemical reactor cooling system and so on.

FLAKE ICE MACHINE

The multiple applications of this type of ice from the industry to the hotel industry, with any configuration: compact machine. Remote group or connected to central cold.

Acquiring a flake ice machine benefits from the support of the best team of ice experts: It is a machine designed to make 100% ice water.

This product on the inside of the evaporator, vertical cylindrical. Made of steel, with an internal labyrinth for the circulation of the refrigerant. Which is isolated to avoid loss of performance of the machine. The inner face is nickel-plated, and has an outer stainless steel jacket.

Scale ice is usually large, flat, thin pieces of ice (1-2 mm) mainly used in the commercial fishing and concrete cooling industries, typically in large quantities.

Made on a large vertical or horizontal drums, scale ice is formed on either the inner or outer surface of the drum by pouring a film of water over it, then contact freezing it into a thin sheet of ice. This ice is sub-cooled down to -7°C in order to make it brittle, then cracked off by a harvesting blade. The ice then falls by gravity into the ice store. These large, flat pieces are good for layering, and are available with a single evaporator up to 50 tonnes.

The vertical style of drum is usually stationary, with the ice formed on the inner surface. The harvesting blade is motor driven around this surface, cracking it off. The horizontal style of drum is usually rotating, with the ice formed on the outer surface. As the drum rotates, a stationary blade cracks the ice from the surface

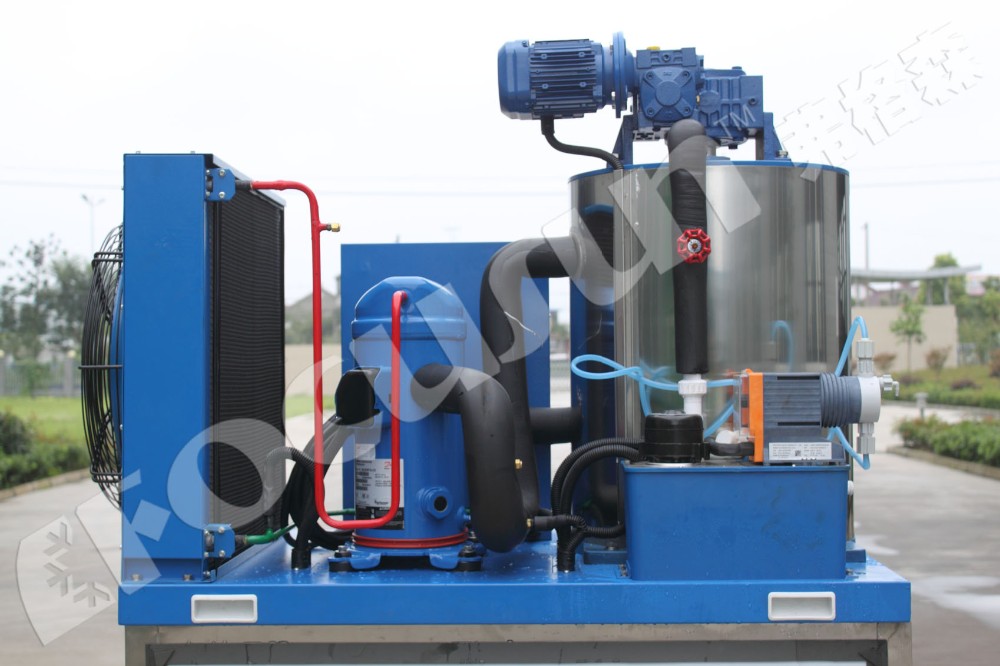

Small capacity flake ice machine

FOCUSUN small capacity air cooling flake ice machine is widely used in supermarket fresh units to retain freshness; meatpacking; food processing industry; aquatic products processing industry. Small outline size is convenient to move and use. After many years of efforts, FOCUSUN ice machine is constantly bring convenience and color to people's life.
Power configuration: Standard power supply:380V/3P/50Hz. The electric system can be changed according to the actual situation, and must be indicated when ordering.
be put into operation: only by providing the water source and the power supply on site.
Refrigerant configuration: Adopt new type of environmental friendly R404A refrigerant.

Flake ice: Irregular ice flakes with size about 40×40mm and thickness around 1.5-2.5mm.

Features: The thin ice can be directly used for stirring and mixing refrigerated materials;No acute edges and corners so it will not damage the surface of the cooled object;Large contact area and fast cooling speed;Easy to crush and mold.

Application fields: Concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, aquatic food and so on.
