Tube Ice Machine 2Ton with ice storage bins
We have been a force in manufacturing Tube Ice Plants & Tube Ice Machines. Our technological excellence, commitment to quality and prompt
after sales service has won us over 150 satisfied customers.
FOCUSUN can supply you with everything from a single tube ice
machine to a complete turnkey tube ice plant with an ice production
capacity range of 1TPD to 70 TPD or more. We have installed and
started-up tube ice plants for chemical companies, concrete
companies, food processing companies, fisheries,
poultry-processing, meat plants etc
SALIENT FEATURES
- Capacities offered: 1 tpd to 70 tpd of ice or more

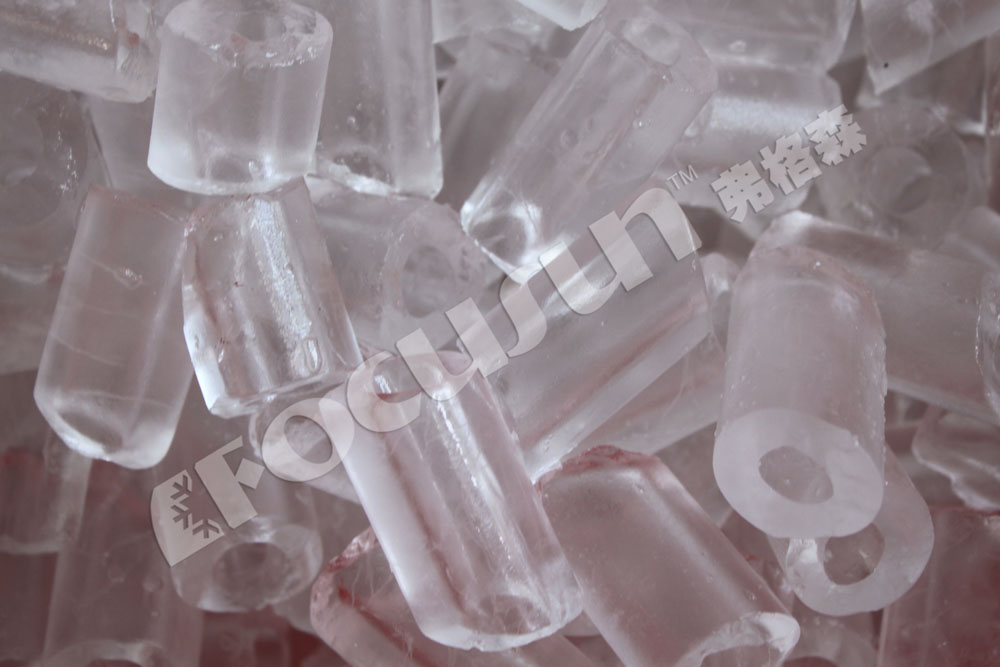

- Tube ice dimensions: 1 1/8” diameter
- Design/Engineering simplicity
- No requirement of skilled workers
- High durability, minimum maintenance
- High energy efficiency
- Prompt service
- Complete spare parts provided
MACHINE COMPONENTS
- Stainless steel tube ice machine
- Water Distributors: Made up of elastic material which creates a
continuous uninterrupted peripheral seal between the tube ends and
water distributor
- Accumulator with insulation
- Refrigerant:R22/R404A
- Float switch
- Freezer: Of high quality stainless steel for all water and ice
contact surfaces providing corrosion resistance and easy to clean
- Cutter: Stainless steel cutters driven by gear motors are uniquely
designed to produce both cylindrical and crushed ice simply by
reversing the motor of the cutter using a switch on the control
panel that controls this function
- Cutter Motors: Built with heavy duty design to give years of
reliable ice-sizing service
- Pumping Tank (Water Pumps): Centrifugal cast in iron pump large
enough to circulate many times the quantity of water to be frozen
producing crystal clear ice crystals
- Heavy duty compressor
- Control Panel: Gives use access to the automatic electrical system
which performs sequences for freezing and thawing precisely and
dependably year after year
- All the running status playing live in touch-screen, convenient.
- Perfect failure & trouble-shooting querying system with red warning
signal flicker if any failure occurred.
- Stop--time could be set at your will.
- The thickness of the tube ice could be adjustable with setting the
icing time.
Specification
| Subject | Unit | Technical parameter |
|---|
| Power supply | Voltage/Phase/Frequency | 380V/3P/50Hz |
| Refrigerant | | R22 or R404A |
| Capacity | Kg/day | 2000 |
| Temperature | Ambient temperature | °C | 35 |
| Waterinlet temperature | °C | 20 |
| Operating power | Total running power | Kw | 11.01 |
| Installment power | Kw | 13.5 |
| Operating power of cutter | Kw | 0.37 |
| Operating power of cold water pump | Kw | 0.55 |
| Compressor | Manufacturer | | Bitzer |
| Refrigeration capacity | Kw | 24.5 |
| Operating power | Kw | 8.89 |
| Compressor COP/EER | Kw/kw | 2.76 |
| Horse power | Hp | 15 |
| Condenser | Fan power | Kw | 1.2 |
| Cooling way | | Air cooling |
| Dimension | Size of ice maker | (L×W×H)(mm) | 1700×920×2000 |
| Size of condenser | (L×W×H)(mm) | 1400×1200×1350 |
| Size of water feeding pipe | | 1/2" |
| Weight of unit | Operating weight of tube ice maker | Kg | 1250 |
| Operating weight of condenser | Kg | 125 |
| Water supply pressure requirement | Bar | 1 |
Considering the increasing demand for an ice bagger, modern ice
industry needs more automation ice handling process, Focusun
follows this trend and has developed efficient bagging machine for
tube ice. Focusun provides both fully-automatic and semi-automatic
ice baggers with different options.
Semi-automatic ice packing machine Model FP-01D
Focusun FP-01D has a simple and neat structure, its light weight
design allows you to mobile it to anywhere you want to pack ice.
All contact area is covered by high quality SS304, which makes
FP-01D hygiene and durable. Single alternator powered, auger type
ice deliver, all these design to present you a simple, reliable and
economical ice packer.
FP-01D consists of loading section, weighing section and packing
section.
System configuration:
- Power control: Schneider(France)
- Main alternator: Panasonic (Japan)
- Compressor: AIRTAC (Taiwan)
- Sensor: Omron (Japan)
- Switch board: Schneider(France)
Equipment features
- Equipped with whole set of The steel structure is also made of high
quality SUS304A.
- The Siemens magnet generator is applied.
- The standard length of the auger can be customized.
- The controlling system utilizes a full set of Schneider electrical
components.
- The weighing device can be set at 1/2/3/4/5 kgs per bag as per your
demand.
- The design of both manual control by pedal and automatic control
makes it much easier for weighing.
- Automatic overload device is equipped so that the machine will come
to a halt in case of excess electricity.
| MODEL | CAPACITY
Kg | MEASUREMENT
L×W×H mm | NET WEIGHT
Kg | GROSS WEIGHT
Kg | VOLUME
CBM | AUGER LENGTH
mm | DIAMETER
mm |
|---|
| FP-01D-Ⅰ | 500kg/hr | 1980*600*1775 | 130 | 150 | 0.8514 | 2400 | 150 |
| FP-01D-Ⅱ | 1000kg/hr | 1600*600*1775 | 150 | 170 | 1.7040 | 2400 | 180 |
Power: 380V 50/60HZ 1KW
Loading cell capacity: 110L
Length of auger: customizing available
If you are considering to purchase an tube ice machine, or you are
just want to know information about the tube ice making machine and
prepare your business for future, please feel free to contact
Focusun sales team.
To make customer have better understanding, our Focusun company
launched a new website and totally explains the different block ice
machines. Can you visit here :
http://www.tube-ice-plant.com/FIT-350.html
We are very interested to have your inquiry.
We are looking forward to give our best supports.
We are also welcome your visit to FOCUSUN CHINA FACTORY to have
face-to-face meeting with our engineering team.
