25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

Focusun Refrigeration Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers

    Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers
    • Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers
    • Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers
    • Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers
    • Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers
    • Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers
    • Buy cheap 25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection from wholesalers

    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    Ask Lasest Price
    Brand Name : Focusun
    Supply Ability : 100 Set/Sets per Quarter
    Price : $5,555.00/units >=1 units
    • Product Details
    • Company Profile

    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    Product Description

    Direct cooling block ice machine introducion:

    The Focusun direct-cooling block ice machine adopts the new German technology, which has excellent cooling effect and low carbon dioxide emission value. The machine adopts modular design, plug and play electronic operating system, especially designed for tropical and coastal environmental conditions.
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    Working principle

    Ice making principle:

    During ice making, water is automatically injected into the ice box. The refrigerant in the outer channel of each ice box is
    directly heat exchanged with water, and the water in the water tank is then cooled and frozen. At this time, the system will
    automatically switch to the deicing mode, and the hot gas will melt the ice surface. The whole deicing process will only take 25 minutes to complete.
    Specification
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    Product Features
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    Equipment features:

    1. Full-automatic ice making and deicing process reduces labor output and saves time and labor.
    2. The evaporator adopts special aluminum alloy plate to ensure the service life of the ice maker and meet the food hygiene requirements.
    3. Integrated unit, compact design and space saving.
    4. The Bitzer semi-closed piston compressor is adopted, which is efficient and reliable.
    5. Siemens PLC control system and touch screen control system are adopted with strong anti-interference ability.
    6. Danfoss expansion valve, Danfoss high and low pressure controller and high and low pressure meter are adopted to improve reliability.
    7. The ice storage device adopts steel wire rope and one-button lifting system, which is easy to install and more durable.
    8. The ice mold is made of special aluminum alloy to ensure that the ice is clean and sanitary.

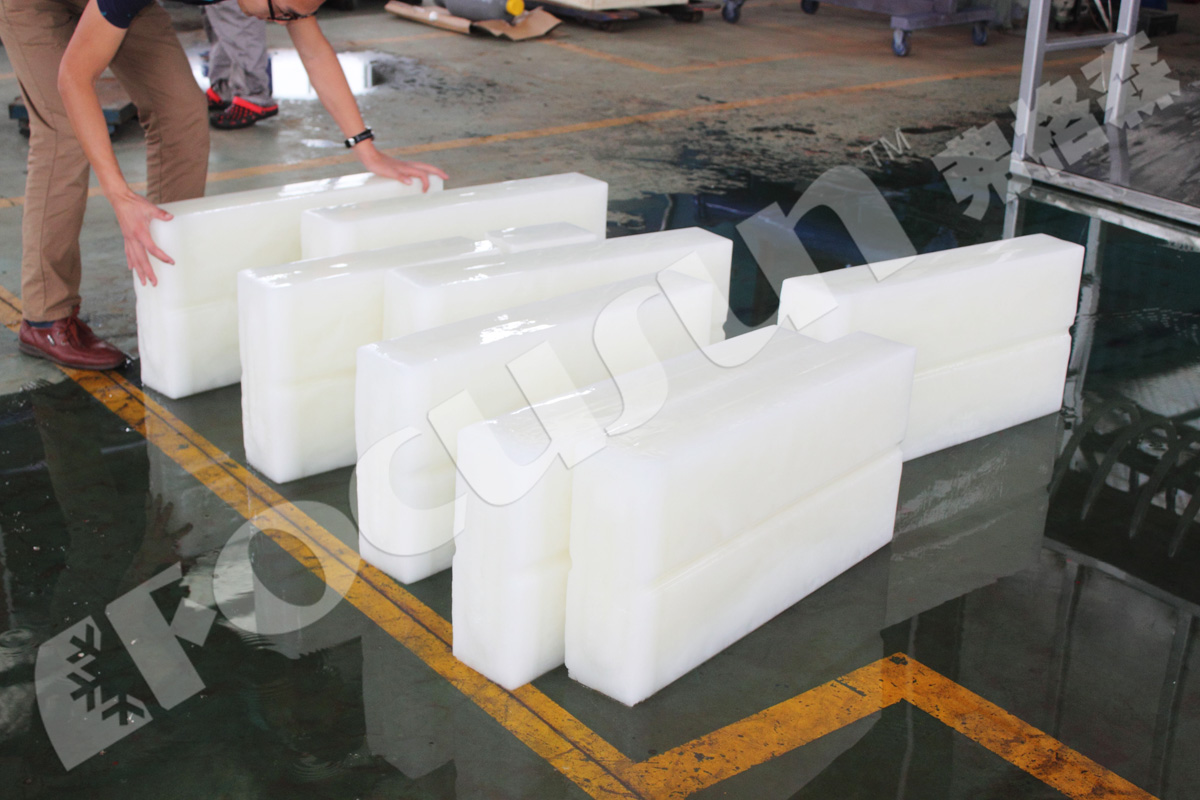

    Block ice
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    color

    The ice has creamy white, transparent and other colors. Transparent ice can be used to make ice sculptures.
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    shape

    Block ice is relatively dense, not easy to melt, and has a long shelf life.
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    transport

    The shape of the ice block makes it convenient for storage and transportation.
    Comparison
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    Direct cooling block ice machine


    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection

    Brine refrigeration block ice machine


    Comparison between the direct and brine refrigeration technology in block ice making:

    1 Difference of cost
    Brine system block ice have a advantage that Initial investment is lower. But in long run. to consider energy consumption and the cost for replacing the ice cans and brine tank, the direct technology is more economical.

    2 Difference of ice discharge time
    For direct technology, just 20 Mins enough for the whole batch of blocks discharging at the same time.
    For brine technology ice, to large degree discharge's time depends on the worker's proficiency. Usually, lift one row ice bucket, melting, doffing, feed water, put into brine water tank, the complete process takes about 15 mins. After one row discharge finished, another row started. Considering workers' manual operation, you can also take another 20 mins for granted.

    3 Material choice dilemma
    For the brine refrigeration type block ice maker, the ice cans of galvanized steel is easy to be corrosive, but if you choose
    stainless steel ice cans, the price is more expensive.
    Product Application


    1. Fisheries and aquatic food processing;
    2. Vegetables distribution and fresh-keeping;
    3. Supermarket/hotel fresh keeping;
    4. Edible ice,
    5. ice carving etc.
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    Packing & Delivery

    PACKING DETAILS

    The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    FAQ
    Q1. What is your terms of packing?
    A: Generally, we pack our goods in platict films or cartons, normally a FCL shipping.

    Q2. What is your terms of payment?
    A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
    You're welcome to see the test of the machines for days.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF.

    Q4. How about your delivery time?
    A: Generally, it will take 45 to 60 working days after receiving your advance payment. The specific delivery time depends on the
    items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: No, all the machines are customized according to power supply ice size in difference. We don't provide sample.

    Q6. What is your aim?
    A: And we would be happy that our customers using our brand Focusun across our world. We aim to give cutomer best products with
    reasonable price.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery.

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
    from.
    our company
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    25KW Energy Saving Block Ice Machine for Ice Production and Video Outgoing-Inspection
    As the top manufacturer of ice machine in China, Focusun™ dedicates itself into researching and developing advanced refrigeration technology. We mainly design and manufacture tube ice machine, block ice machine, flake ice machine, cube ice machine, plate ice machine, slurry ice machine, water chiller, vacuum cooler, concrete cooling system, automatic ice storage system, dynamic ice storage system, snow making system, ice crusher and all kinds of cold rooms.
